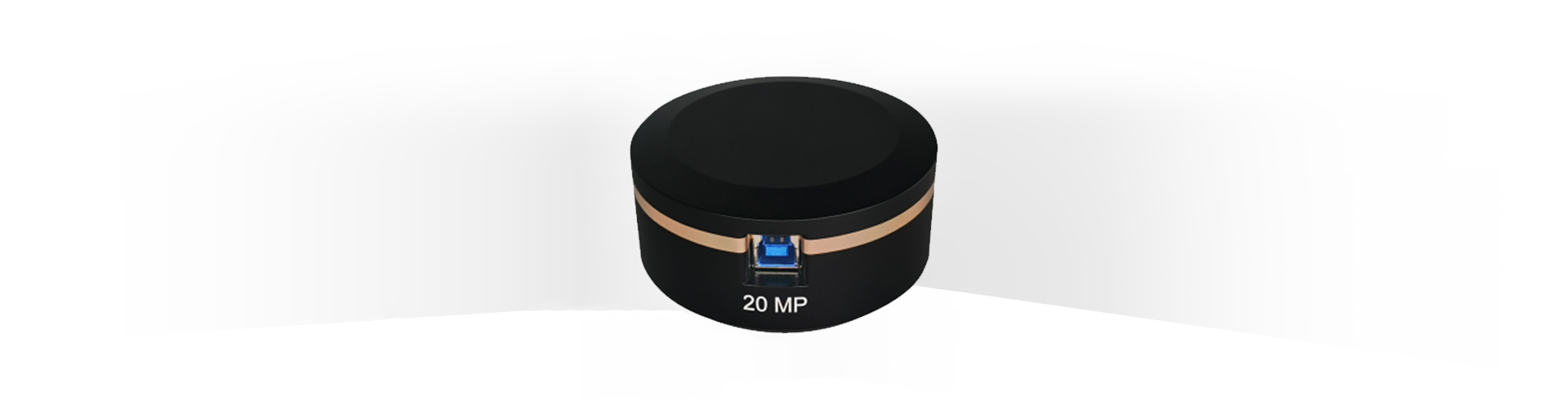

AFSCOPE U120 Camera
Camera matching device：
●Front end matching: C mouth microscope or C mouth lens.
Camera installation instructions：
●Connection of the U120 camera to the C-shaped lens.
●Complete the camera to PC with TYPEB-USB 3.0 line.
Camera shape size：
Camera specifications
Product model | U120 |
Focus on the way | Fixed focus |
Imaging sensor | CMOS color |
Effective pixel | 20 million pixels |
Target size | 1〞 |
Like a meta size | 2.4um |
Menu | Full digital UI design |
Operate mode | PC operation |
Lens interface | C-type |
Output method | Type-B USB3.0 |
White balance | Manual / Automatic |
Exposure | Manual / Automatic |
Output Format | MJPEG/NV12 |
Display frame rate | 5440x3648/20fps(MJPEG); 5440x3648/8fps(NV12)；2720x1824/30fps(NV12)；1824x1216/60fps(NV12) |
Scanning method | Progressive scanning |
Electronic shutter speed | 1/30s～1/100000s |
working temperature | -20℃~70℃ |
Digital amplification | Support |
memory function | PC memory |
