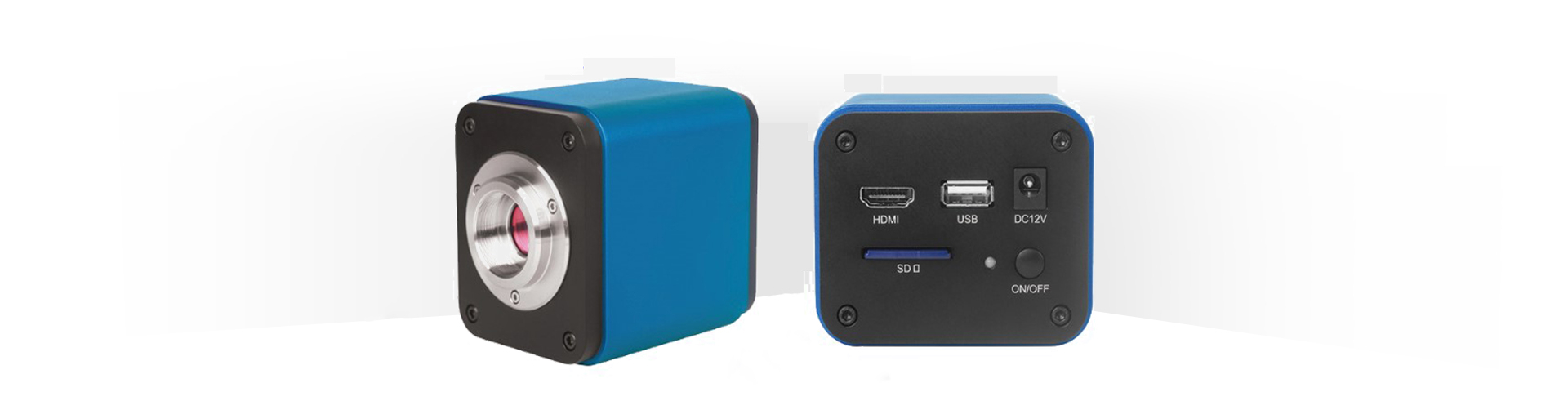

WPC185D- HDMI-wifi microscope Industrial Camera

Basic features of HDMI terminal for WPC series cameras

WPC series camera is an optical design of Output (HDMI+WIFI+SD card) camera, here XCAM X means multi interface CMOS camera, it USES ultra-high performance CMOS sensor.

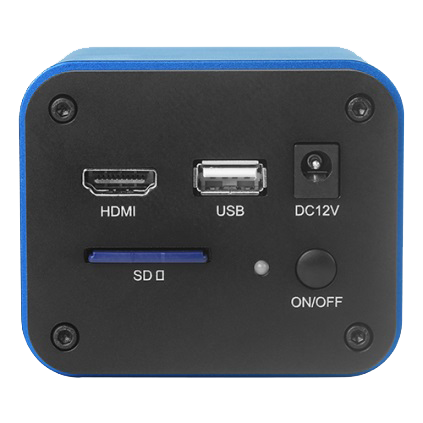

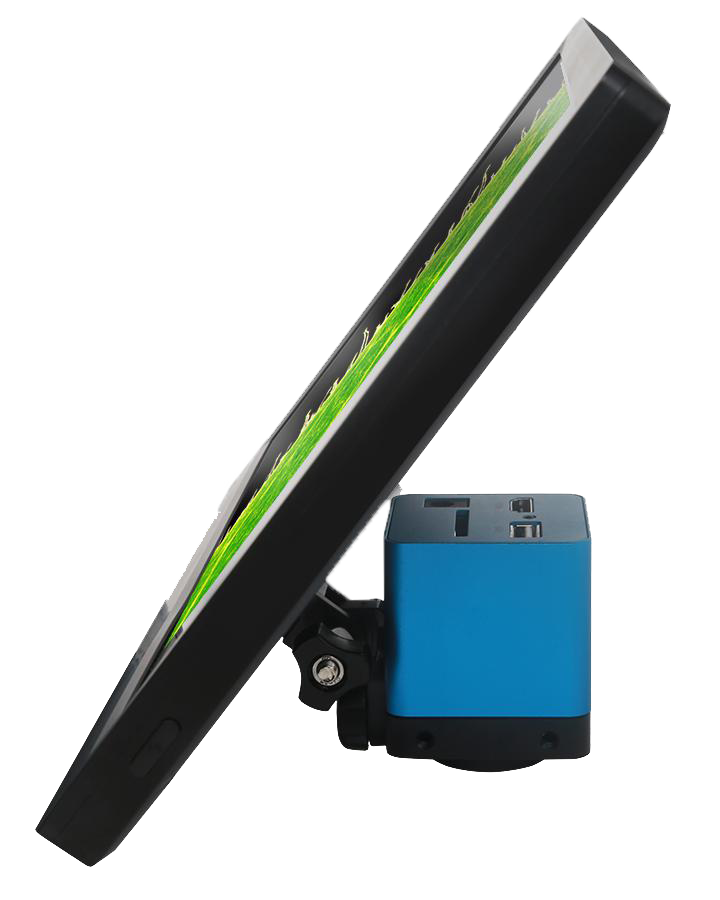

The camera can be directly connected to the HDMI display, and it can also be connected to the computer and other smart phones or notification tablets through WIFI. Moreover, the image and video can be saved in the SD card for field analysis and subsequent research.

The biggest feature of WPC series cameras is that the camera itself is an embedded ARM core, which can directly display various functions of the camera on the HDMI display in the form of control panel. Furthermore, users can directly control various parameters of the camera with the mouse of USB mouse interface.

In addition, there are various toolbar buttons at the bottom of the HDMI interface for users to operate.

Basic features of WPC series camera WIFI terminal

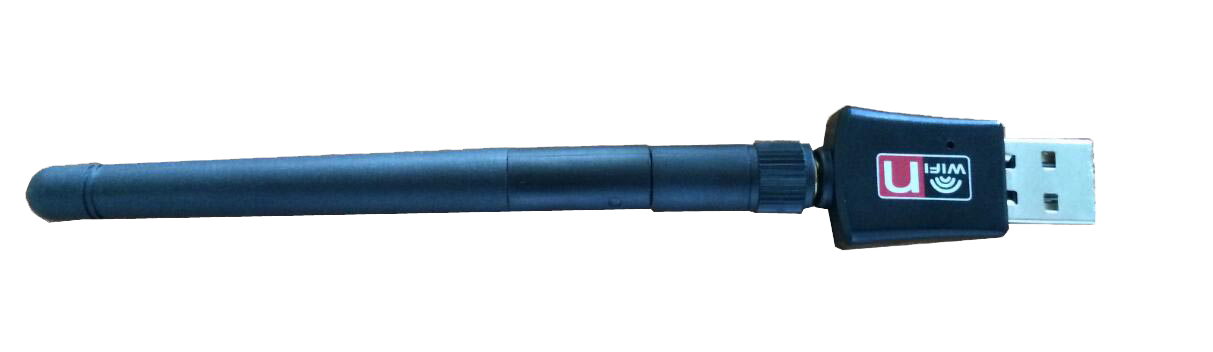

Unplug the mouse, insert THE USB WIFI module, and connect the computer to the WIFI, then the WPC series camera is another camera with WIFI interface, and users can directly realize the hardware control of the camera with random software ToupView or ToupLite.

WPC series cameras can be used for tool field detection, microscope observation and so on.

Basic configuration of WPC series cameras

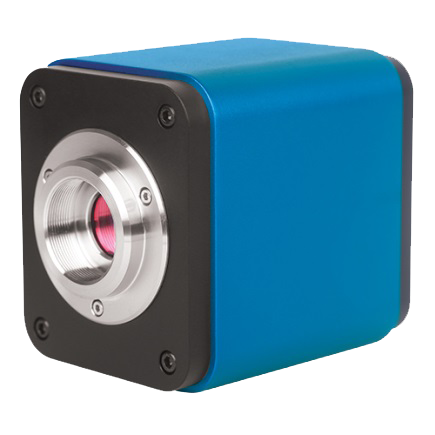

•  C interface camera with Sony high sensitivity CMOS sensor;

•  HDMI & WIFI can achieve simultaneous output;


  When l is used as an HDMI camera, XCamView is embedded with mouse control software. All functions of the camera can be realized by USB mouse operation XCamView software.


  And support multi-language operation interface;

  Features of embedded image capture with video recording to SD card;

  An embedded mouse control panel;

  Built-in zoom, mirror, compare, freeze, cross wire, browsing and other mouse control toolbar;

  Embedded image and video browsing, display and play functions;

•  1920*1080(1080P) output resolution, can be easily connected with the market hd display built-in HDMI interface, and really realize the use of hot plug and plug.


   Can achieve 5.04M pixel (2592*1944) image capture and preview (WPC178B-HDMI) or 2.0M pixel (1920*1080)(WPC185D-HDMI);


  Can realize 1080P video stream (ASF format) SD card storage.

•  When used as a WIFI camera, insert THE WIFI module of USB interface, which can freely connect with ToupView/ToupLite software and support hot-unplugging;


•  Ultra-Fine color engine ensures accurate color reproduction (when WIFI is connected to the computer);


•  Provide advanced video and image processing application software ToupView with the camera;


•  Provides Windows/Linux/OSX multi-platform standard SDK;

•  CNC shell design and processing;


WPC185D- HDMI-wifi microscope Industrial Camera

C: color;

M: Monochrome or black and white;
