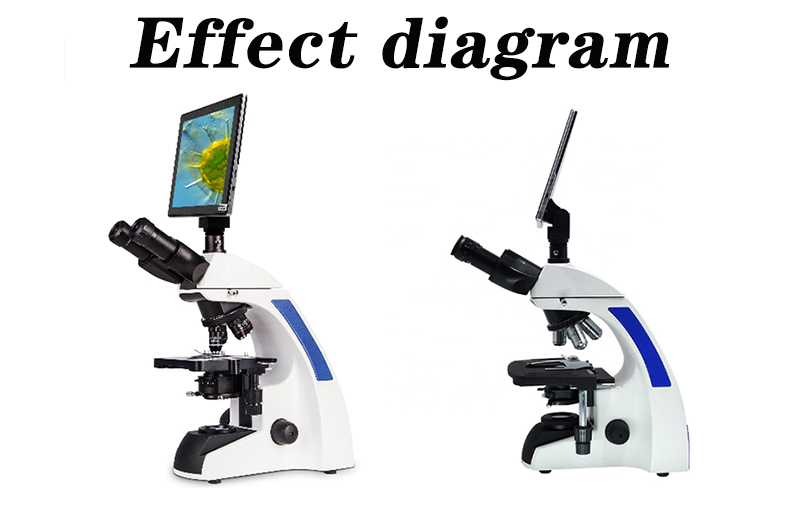

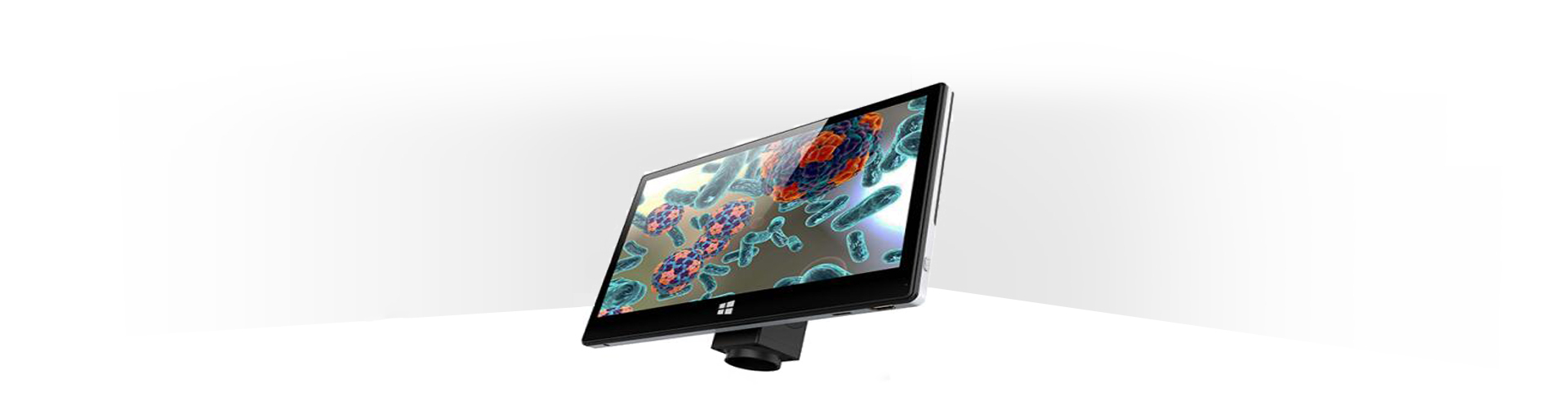

DM1618 with screen WIN10 tablet imaging all-in-one machine

DM1618 with screen WIN10 tablet imaging all-in-one machine

Product Features:

1, built-in measurement system, can be used for length measurement, two center distance geometric measurement system and other measurement systems, data accurate to 1/100 micron cells no matter how small can easily achieve accurate measurement

2. Click the button to directly record the 1080P 60FPS recording. The recording document is stored in the 8GSD card, and the user can directly replay and observe.

3. The startup screen will display the functions of taking photos, recording, setting, etc. Click to operate directly, which is easy to get started



Product Introduction:

1. WIN10 microscope screen all-in-one machine is customized and developed for microscope users, which is used for the collection, display, measurement, storage and other integrated equipment of slices and other observed objects.

The collected pictures and videos can be retained.

A variety of third-party applications can also be installed according to user requirements.

2. The system is a brand new product designed for medical and industrial fields, with good image restoration effect and distinct hierarchy.

Built-in 5 megapixels, 1/2.5 target surface high-speed camera, the real restoration of the image.

3. The product supports 5GWIFI, which connects to the network at a faster speed and is a good helper of the interactive system.

4, built-in dual USB port Settings, one USB3.0 standard interface, can be external keyboard, mouse, printer, mobile hard disk and other peripherals;

MiniUSBOTG along the way can expand more user's personalized requirements.

5, support hard disk expansion, you can insert TF card.

6. Support Bluetooth, HDMI interface external display screen, projector and other devices.



DM1618 with screen WIN10 tablet imaging all-in-one machine

Product parameters

specifications

Product model

DM1618

Product categories

all-in-one

Sensor size

MN34120  1/2.3 of an inch

Effective pixels

16M pixel

resolution

30fps@1080P

Output interface

USB2.0、HDMI、TF(built-in WIFI)

Like yuan size

1.335um×1.335um

The power supply

DC-12V/2A

function

UI

Comprehensive digital, mouse operation, user-friendly Settings

Labeling functions

Point coordinates, reticle, coordinate system, text annotations

Length measurement

Straight line length, broken line length, curve length, parallel line distance, point line distance

Distance between the centers of the circles

Radius fixed circle, two points fixed circle, three points fixed circle

Geometric measurement

Line length, radius fixed circle, two points fixed circle, three points fixed circle, concentric circle

The geometric area

Polygons, squares

Image fast

16 million photos are supported

Video video

Support 1080P video recording

Measurement system

S-eye

packaging

Appearance of size

11.6 inch

Standard accessories

DC-12V



Filename
Release time
Download
2020-10-26
2020-10-26
2020-10-26
