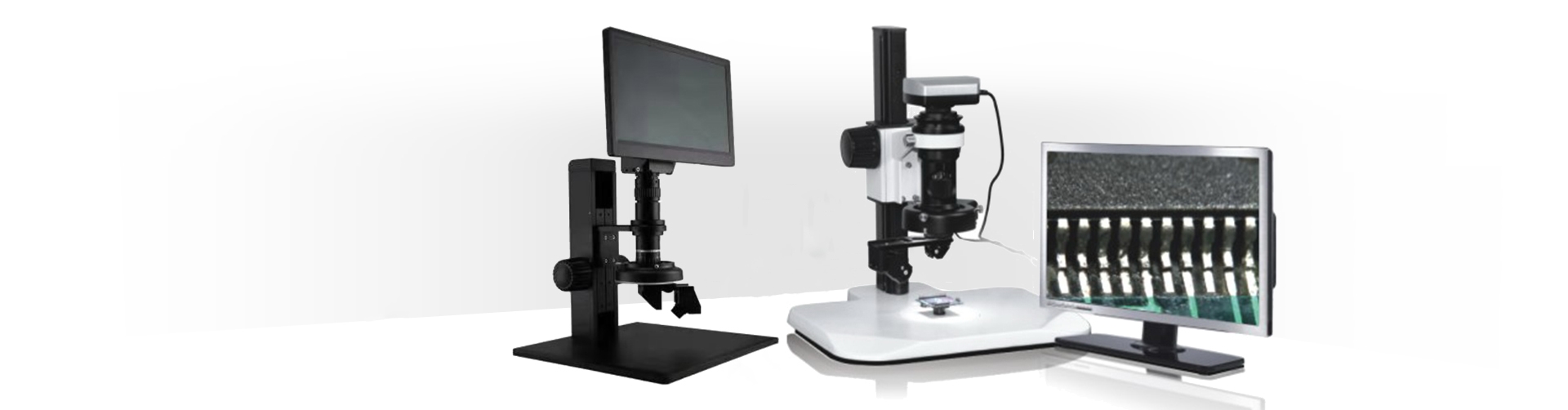

3DM-02Three-dimensional digital microscope

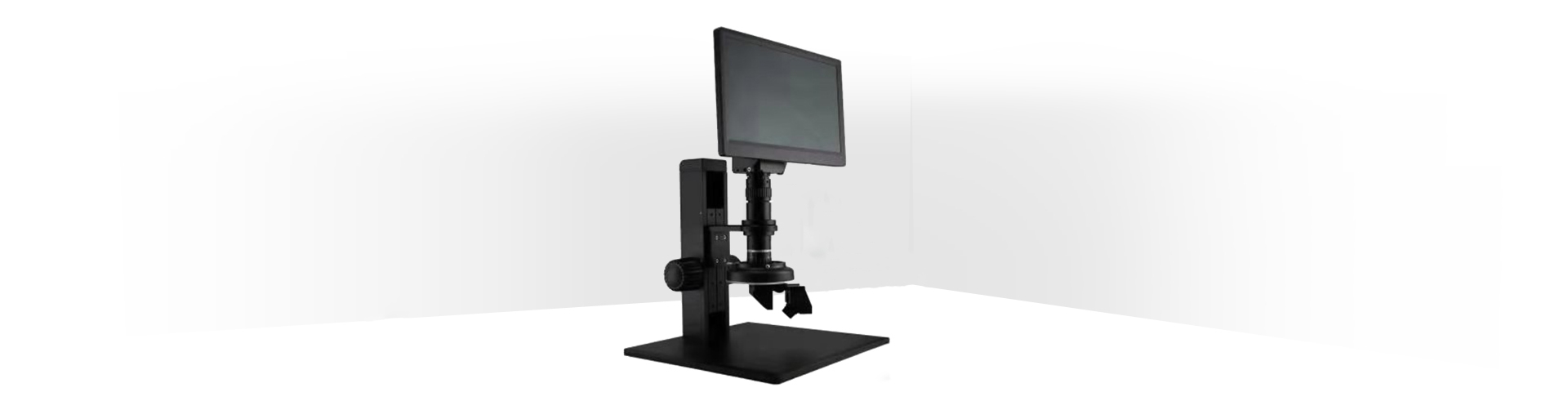

3DM-02Three-dimensional digital microscope

3d digital video microscope, with advanced optical system, low distortion, high resolution, large depth of field, wide field of view

And flat, good focus and other characteristics, novel design, simple operation.

The 2D/3D viewing Angle can be manually switched, and the 3D lens can be used to observe stereo elements and deep holes. The sharpness remains unchanged when switching.

Center position is consistent.





It provides 36° rotation observation and observation working distance up to 95mm, which is the highest level in the industry.

With a variety of digital and analog video systems to meet the needs of a variety of users.

3d digital video microscope can be widely used in microelectronics, precision electronics, SMT spot detection, precision hardware, forensic identification, life science, plant morphology and other fields.Complete products include:


L HT-108 zoom microscope body

L 2D/3D view lens

L 1X standard objective lens and 1X video connector

L LED ring lamp, 72 particles, black anti-static metal shell, continuously adjustable brightness, four areas respectively controlled light source

L HA-TS50 white guide rail base,

L USB DIGITAL HD high speed camera

L VMS3.5 measurement software and 1 piece of optical calibration ruler


Digital microimage system :5 megapixel USB2.0 high-speed transmission interface, 1/2.5" CMOS, 15F /s

Ht-108 zoom microscope body

L Wide field of view

L Low distortion and high resolution

L High depth of field (≥6mm)

Automatic focusing of all kinds of digital analog cameras

L Economic and practical

L HT-108 zoom microscope can be widely used in mechanical, semiconductor, microelectronics and welding spot detection industries.

L Zoom lens has high resolution and clear image.

L Through the manual focus stabilization device of the measurement system, marked with multiple scales, pre-set with 0.3x, 0.5x,1X, 1.5x, 2.2x.

L can provide different multiples, field of view and depth of field of the matching objective lens.




Technical specifications


Rotation observation: 36°

L with 1X objective lens (standard)

L depth of 6 mm or more

L 2 d / 3 d conversion

L Conversion mode: manual

L When switching, the clarity remains unchanged and the working distance is consistent

L The center is the same

L Working distance: 95mm


The host has doubled the range

0.3X~2.2X

Zoom ratio

1:7

Standard objective lens and matching lens

1X

magnification

7X~300X(17”LCD)

field

3.5mm-25mm

Working distance

45.66mm~99mm,Standard operating distance is95mm

Optical lens

0.5X,1X and 2.0X(2D/3D rotating objective lens accessories are not supported)

Optical parameters of mirror body

objective

0.5X(choose)

1X

2X(choose)

N.A.

0.0058-0.041

0.012-0.08

0.014-0.1

Res.(lp/mm)

17.3-122

35.8-238

41-298

MAG.

0.16X-1.13X

0.32X-2.27X

0.65X-4.55X

D.O.F.(mm)

16.3-0.33

6-0.086

2.8-0.055

W.D.(mm)

190

95

45.6

F.O.V.(mm) 1/2″

50-7

25-3.5

12.3-1.8


Filename
Release time
Download
2020-09-02
