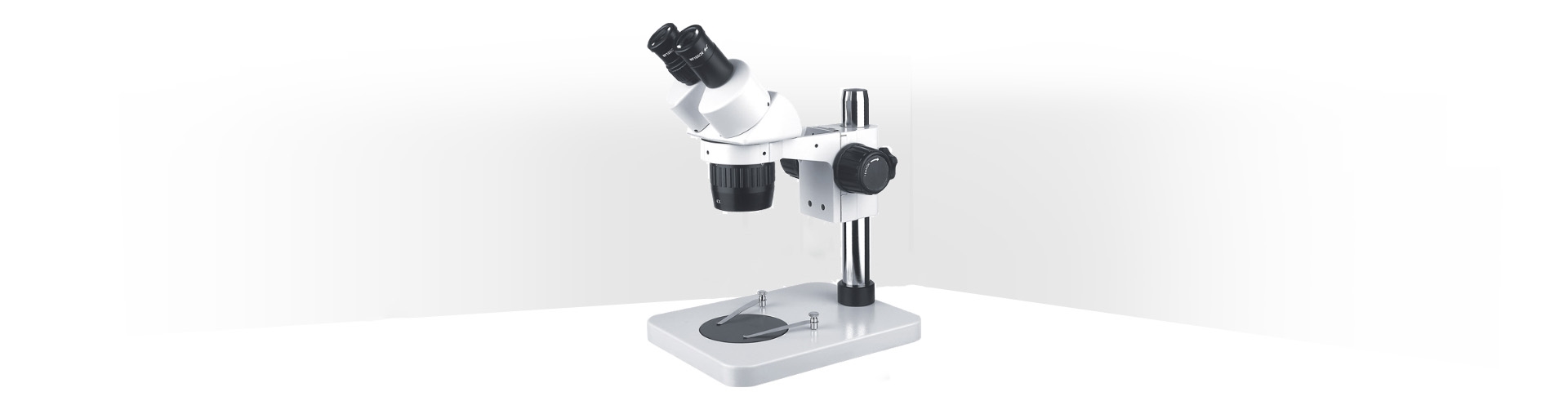

SZM45-B1Stationary phase ploidy visual microscope

SZM45-B1Stationary phase ploidy visual microscope


The observation head of SZM45-B1 has a 45° or 60° tilt tube and a 360° rotating binocular head.

Eyepiece tube can be used according to need to adjust the distance and diopter, is made of super high eyespots wide-angle eyepiece, SWH10X (23 mm) Φ pd regulating scope 54-75 - mm, double eyepiece barrel visibility are adjustable, the adjusting range of plus or minus 5 d.

The high focus handwheel is easy to use when the viewing head is installed on other devices.

Focusing range of 100 mm (50 mm) when round pillar, central workbench Φ diameter of 95 mm.

The three-way observation head on the main rod can be connected with a photographic device and a video recording device, which can shoot the observation sample images and output them to the TV or computer in the form of video.


SZM45-B1 Stationary phase ploidy visual microscope

The eyepiece

The standard configuration

The auxiliary lens 0.5X(optional)

The auxiliary lens 2X(optional)

Working distance 100mm

Working distance 165mm

Working distance 30mm

magnification

field

magnification

field

magnification

field

10X/20mm

7X

28.6mm

3.5X

57.1mm

14X

14.3m

45X

4.4mm

22.5X

8.9mm

90X

2.2mm

20X/10mm

14X

14.3mm

7X

28.6mm

28X

7.1mm

90X

2.2mm

45X

4.4mm

180X

1.1mm

magnification

Standard configuration: 7X-45X, optional eyepiece and auxiliary objective can be extended to 3.5 x-270X, continuous doubling

The eyepiece

Standard configuration: 10X/20mm, large field of vision, wide Angle, high eye-point, for the convenience of the observer wearing glasses

Optional eyepiece

15X/15mm,20X/10mm

Observe the head

45° tilt, 360° rotation, pupil distance 54-76mm;

Bilateral visual adjustment (±5)


Hinged binocular

objective

0.7X-4.5x continuous magnification and 6.4:1 objective magnification ensure image plane focal quality

The auxiliary lens

0.5X,2X

Focusing bracket

A1 Focusing bracket handwheel adjustable for tightness, lifting range 50mm

The base

B1 column type small flat base, optional other base, see the base component diagram

lighting

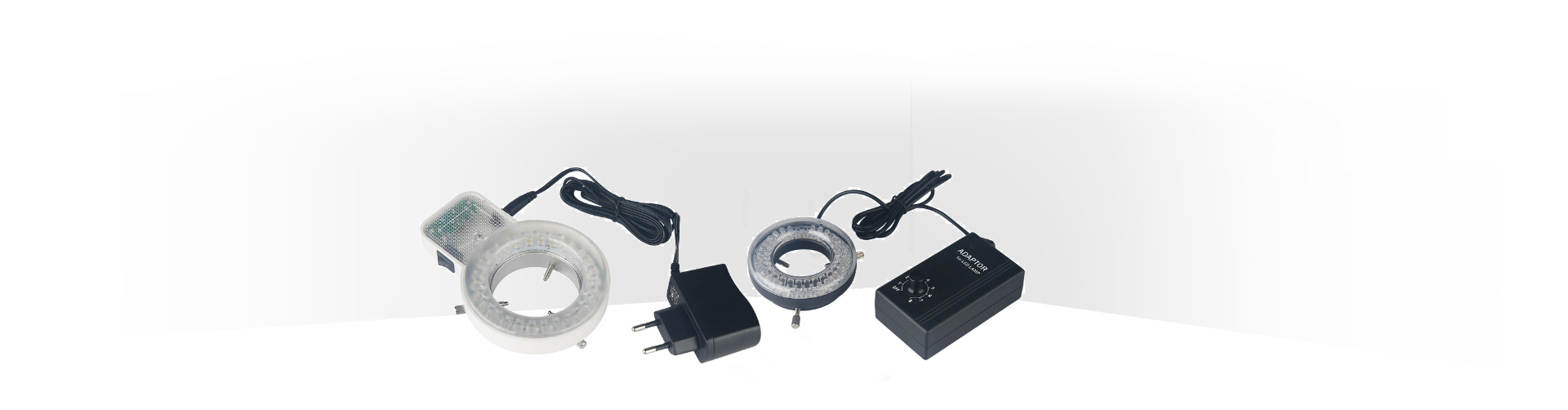

All kinds of fluorescent and LED ring lamps are optional. Please refer to the external light source component diagram for details
