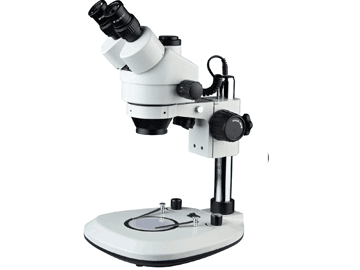

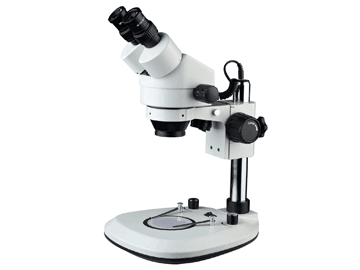

Xtl-206 continuous ploidy visual microscope

Xtl-206 continuous ploidy visual microscope

Product Introduction:

Provides the high quality optical system and the durable reliable operation mechanism.

Complete accessories for a diverse portfolio of configurations.

To meet the requirements of modern biology, medicine, scientific research, modern electronic industry online detection and other science and technology industry and other high-precision aspects.

Performance Features:

1. High quality optical components coated with special film create high quality optical images

2. Positive images with a flat image and good contrast in the large field of view, especially the image quality is brighter and clearer in the peripheral field

3. Continuous variable magnification objective lens 0.7x ~ 4.5x (6.3:1) with standard magnification ratio of 7X ~ 45X was adopted.

(Optional auxiliary objective lens, magnification ratio 14X ~ 180X)

4. The effective standard working distance reaches 100mm. Auxiliary objective lens is selected to extend the working distance to 26mm ~ 287mm, creating enough space for use

5. The observation head is tilted at 45° and the visual Angle of the two tubes can be adjusted to ensure that users with different eyesight can obtain clear and satisfactory images

6. Ergonomic structure design, optimal eye height, long time use without fatigue

7, double hand wheel horizontal (axial) bilateral setting, easy to operate and comfortable, double repeatability high precision

8. With a variety of accessories, expand the application field.

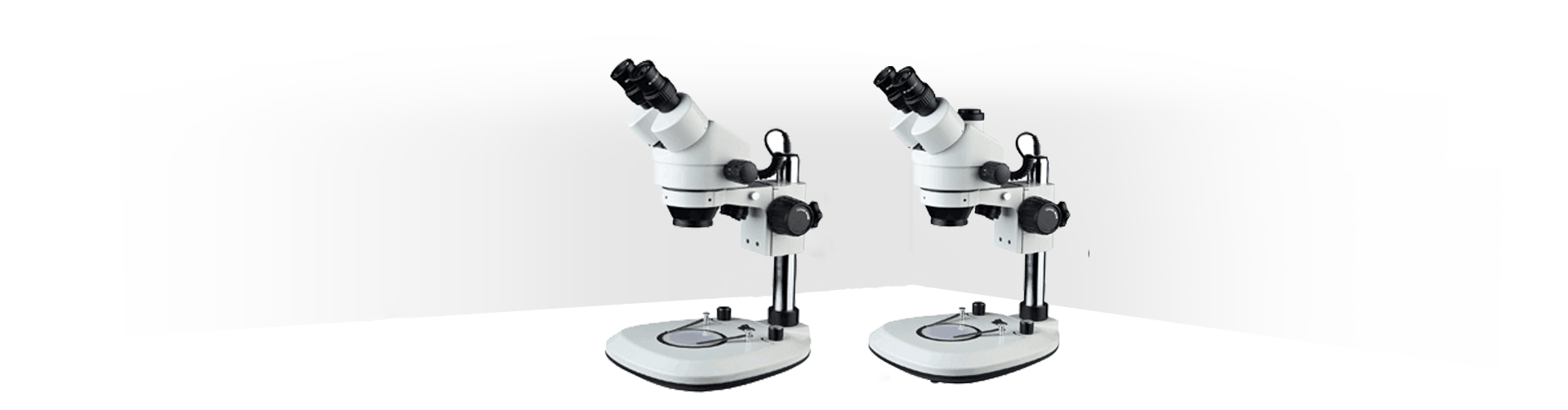

Xtl-206 continuous ploidy visual microscope

Technical parameter list

Observation head: Binocular observation head.

45° tilt, 360° rotation

Eyepiece: high-point wide-field eyepiece WF10X/20mm

Objective lens :0.7X-4.5X continuous variable objective lens

Total magnification: 7-45 times

Working distance :100mm

Pupil distance adjustment range :54-76mm can be adjusted in visual degree;

The adjustment range is ±5 diopters

Base: Pillar LED lamp base

Bracket :A1 focusing mirror frame, adjustable focusing handwheel, lifting range 50mm.

Lamp source: upper and lower 3W single LED lamp

Instrument options:

A. Auxiliary objective lens: 2×,0.5×

B. Wide-angle eyepieces: 5×,15×,20×,25×

C. Partition eyepiece: partition 0.1mm, visual compensation

D. Microruler: cross coordinate, 0.1mm

E. Optical fiber cold light source: ring or branch, halogen tungsten lamp 24V/150W, with filter

F. Mechanical loading platform: coaxial moving or rotating platform or large platform with universal support

G. Photomicrography: image processing, image analysis (measurement) system

H. C camera socket :0.35X/0.5X/ 1.0x
