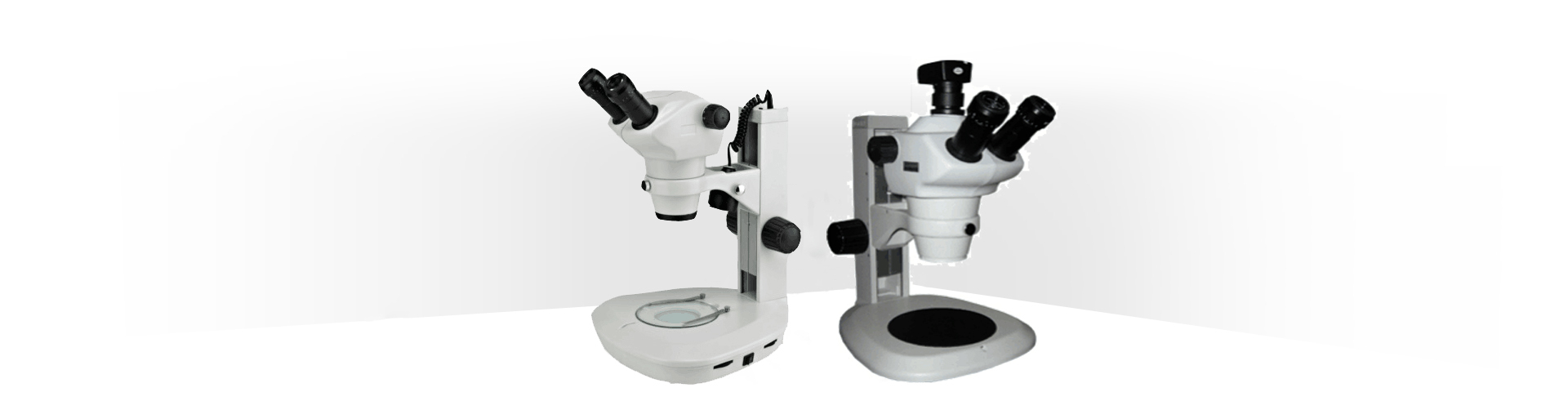

SZ6000 series stereomicroscope

SZ6000 series stereomicroscope

Product Introduction:

SZ series optical microscope provides high quality optical system and durable and reliable operation mechanism.

Complete accessories for a diverse portfolio of configurations.

To meet the requirements of modern biology, medicine, scientific research, modern electronic industry online detection and other science and technology industry and other high-precision aspects.

Performance Characteristics:

1. High quality optical components coated with special film create high quality optical images

2. Positive images with a flat image and good contrast in the large field of view, especially the image quality is brighter and clearer in the peripheral field

3. Continuous magnification objective lens of 0.8x ~ 5X (6.3:1) and standard magnification ratio of 8X ~ 50X were adopted.

(Optional auxiliary objective lens, magnification ratio 16X ~ 200X)

4. The effective standard working distance reaches 115mm. With the optional auxiliary objective lens, the working distance will be extended to 43.5mm ~ 211mm, creating enough space for use

5. The observation head is tilted at 45° and the visual Angle of the two tubes can be adjusted to ensure that users with different eyesight can obtain clear and satisfactory images

6. Ergonomic structure design, optimal eye height, long time use without fatigue

7, double hand wheel horizontal (axial) bilateral setting, easy to operate and comfortable, double repeatability high precision

8. With a variety of accessories, expand the application field.

SZ6000 series stereomicroscope

Relevant models		SZ6000A	SZ6000B	SZ6000SM

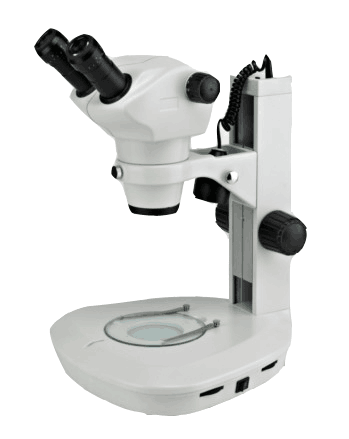

The tube	The body of the binocular vision mirror with an inclination of 45°	●

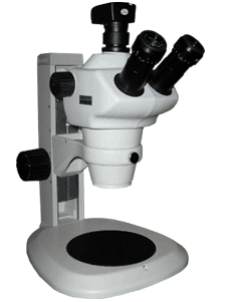

	The body of the triocular vision mirror with an inclination Angle of 45°		●
	The body of the triocular vision mirror with an inclination Angle of 45° contains digital accessories			●
Visual adjustable eyepiece	Wide field flat field eyepiece EW10 x / / Φ 22	●	●	●
	WF15×/Φ16	○	○	○
	WF20×/Φ12	○	○	○
	WF30×	○	○	○
Changing times objective	0.8×-5×	●	●	●
Changing times than	6.3：1	●	●	●
Working distance	115mm	●	●	●
interpupillary distance	52-75mm	●	●	●
The auxiliary lens	0.5×	○	○	○
The auxiliary lens	2×	○	○	○
The cargo platform is inserted into the round plate	Transparent glass plate 125mm in diameter	●	●	●
The cargo platform is inserted into the round plate	Black and white board	●	●	●
Lighting system	No light	○	○	○
	Reflected light 100V-240V/LED	●	●	●
	Transmitted lighting 100V-240V/LED	●	●	●

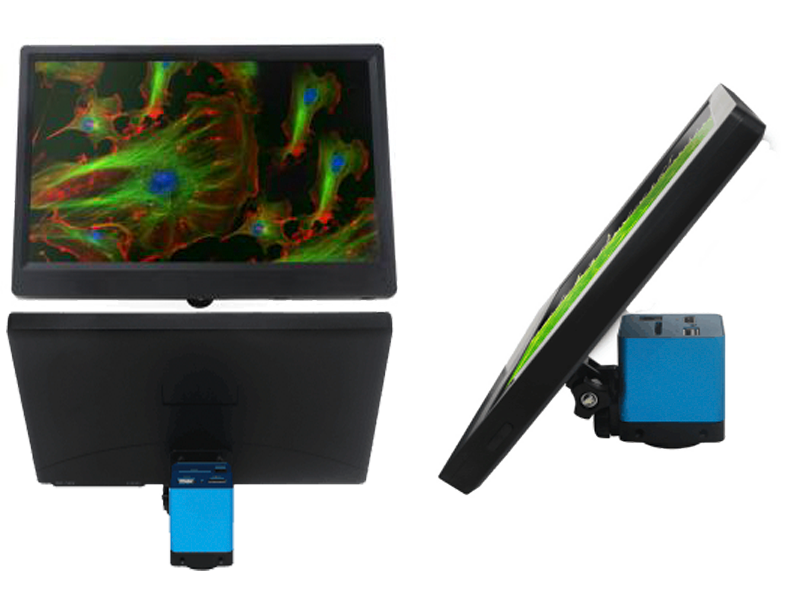

Photo attachments	Digital CMOS chip industrial cameras contain 5 megapixels of software	○	○	●
Note: ● Standard configuration, ○ Optional configuration
