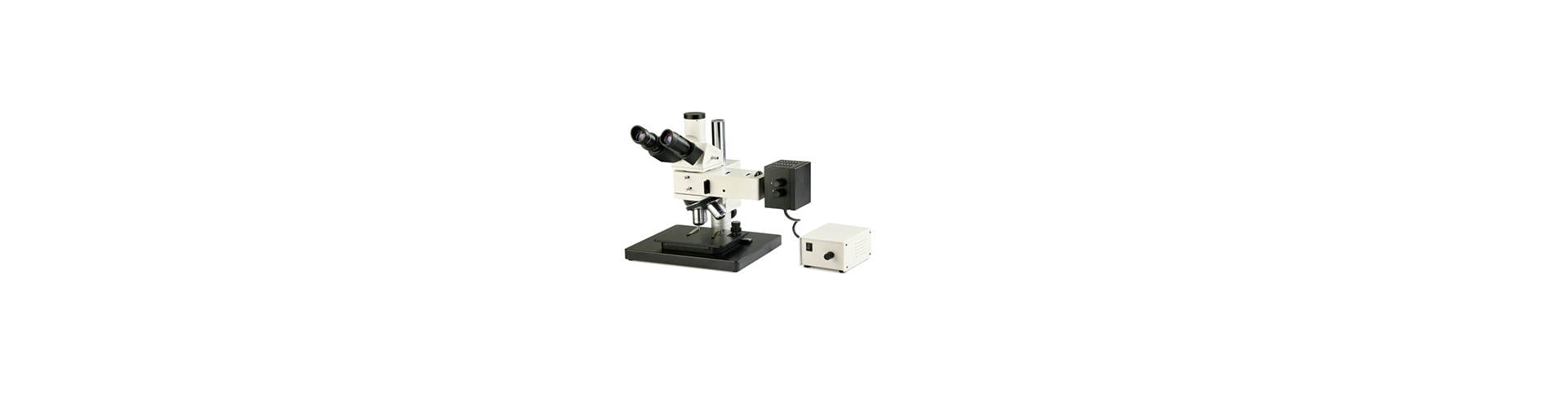

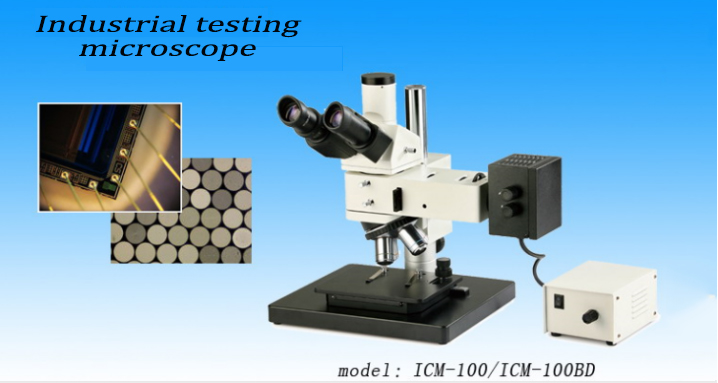

ICM-100Industrial testing microscope
Icm-100/100bd industrial detection microscope is suitable for microscopic observation of the structure and geometry of workpiece surface.

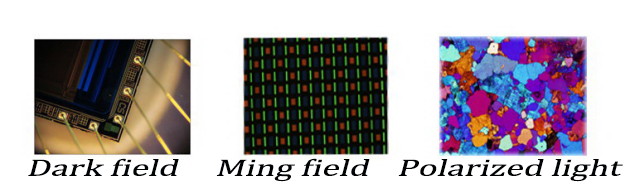

The excellent optical system with infinite distance and modular function design concept can facilitate the upgrade of the system, realize the functions of polarized light observation and dark field observation, etc. The pillar lifting device can quickly adjust the distance between the workbench and the objective lens, and is suitable for the detection of workpiece of different thickness.
The mechanical mobile carrier platform can effectively position the workpiece observation position.
The focusing mechanism adopts cylindrical roller guide drive, and the lifting and lifting of the mechanism is stable.
Products suitable for precision parts, integrated circuits, packaging materials and other products testing.
ICM-100Industrial testing microscope
Standard configuration
| Technical specifications | ||
| The eyepiece | WF10X view (view Φ 22 mm) | |
| Infinite distant flat field achromatic objective lens | ICM-100 | PL L5X/0.12 Working distance：26.1 mm |
| (With field objective lens) | PL L10X/0.25 Working distance：20.2 mm | |
| PL L20X/0.40 Working distance：8.80 mm | ||
| PL L50X/0.70 Working distance：3.68 mm | ||
| PL L100X/0.85 Working distance：0.40 mm（optional） | ||
| ICM-100BD | PL L5X/0.12 BD Working distance：9.70 mm | |
| (Illustration/dark field objective) | PL L10X/0.25 BD Working distance：9.30 mm | |
| PL L20X/0.40 BD Working distance：7.23mm | ||
| PL L50X/0.70 BD Working distance：2.50 mm | ||
| PL L100X/0.85 Working distance：0.40 mm（optional） | ||
| The eyepiece tube | Red glasses tilt at 30˚, enabling 100% light - up photography | |
| Falling lighting system | ICM-100 | 6V30W halogen lamp with adjustable brightness |
| ICM-100BD | 12V50W halogen lamp with adjustable brightness | |
| Built-in field light bar, aperture light bar, (yellow, blue, green, ground glass) color filter conversion device, push and pull type polarizer and polarizer | ||
| Focusing mechanism | Coarse fretting coaxial focus, with coarse hand wheel tightness adjustment device, fretting cell value :2 m. | |
| converter | Five-hole (inward-type ball positioning) | |
| The workbench | External dimensions of base：300mmX240mm | |
| External dimension of mechanical carrier table: 185mmX140mm, movement range: transverse 35mm, longitudinal 30mm | ||
