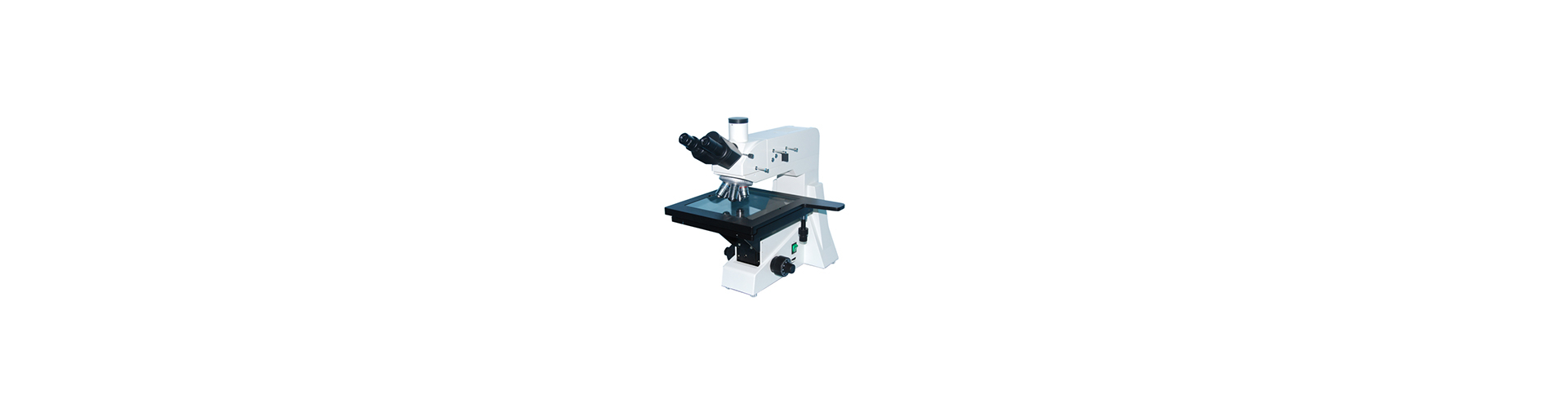

Tl-101 series large platform metallographic microscope
Tl-101 series normal metallographic microscope is suitable for microscopic observation of opaque objects.
Equipped with a large moving range of mechanical carrier, falling light illuminator, built-in polarized light observation device, with clear image, good contrast, beautiful shape, easy to operate and other characteristics, it is an ideal instrument for the study of metalology, mineralogy, precision engineering, electronics and other research.
Suitable for schools, scientific research, factories and other departments.
Metallographic microscope performance characteristics:
▲ Equipped with a large visual field eyepiece and long distance achromatic objective lens (without cover glass), the field of view is large and clear
▲ Equipped with a large range of moving platform, can move fast and slow.
▲ Coarse fretting coaxial focusing mechanism, coarse fretting adjustable, with locking and limiting device, fretting lattice value :0.7 m.
▲ 6V 20W halogen lamp, adjustable brightness.
▲ Three eyepiece tube, can freely switch between normal observation and polarized observation, can carry out 100% transparent photography.
Standard configuration of metallographic microscope:
model | TL-101 | TL-101A |
The eyepiece | Large WF10X (Φ 18 mm) | |
objective | Long anomaly field achromatic objective lens (capsula-free glass) PL 5X/0.12 | |
Long anomaly field achromatic objective lens (capsula-free glass)PL L10X/0.25 | ||
Long anomaly field achromatic objective lens (capsula-free glass)PL L20X/0.40 | ||
Long anomaly field achromatic objective lens (capsula-free glass)PL L40X/0.60 | ||
Long anomaly field achromatic objective lens (capsula-free glass)PL L80X/0.80 | ||
The eyepiece tube | Red glasses, tilting 30˚,(built-in polarizing device can be switched) | |
Falling lighting system | 6V 20W halogen lamp with adjustable brightness | |
Falling illuminator comes with field light bar, aperture light bar, polarizer,(yellow, blue, green) filter and ground glass | ||
Focusing mechanism | Lifting platform, coarse fretting coaxial focusing, fretting cell value 0.7 m, coarse fretting adjustable elastic, with locking and limiting device | |
converter | Quintuple(Frontward ball bearing inner locating) | |
Objective table | Three-layer mechanical mobile size: 250mmX230mm, mobile range: 154mmX154mm | Three-layer mechanical mobile size: 280mmX270mm, mobile range: 204mmX204mm |
