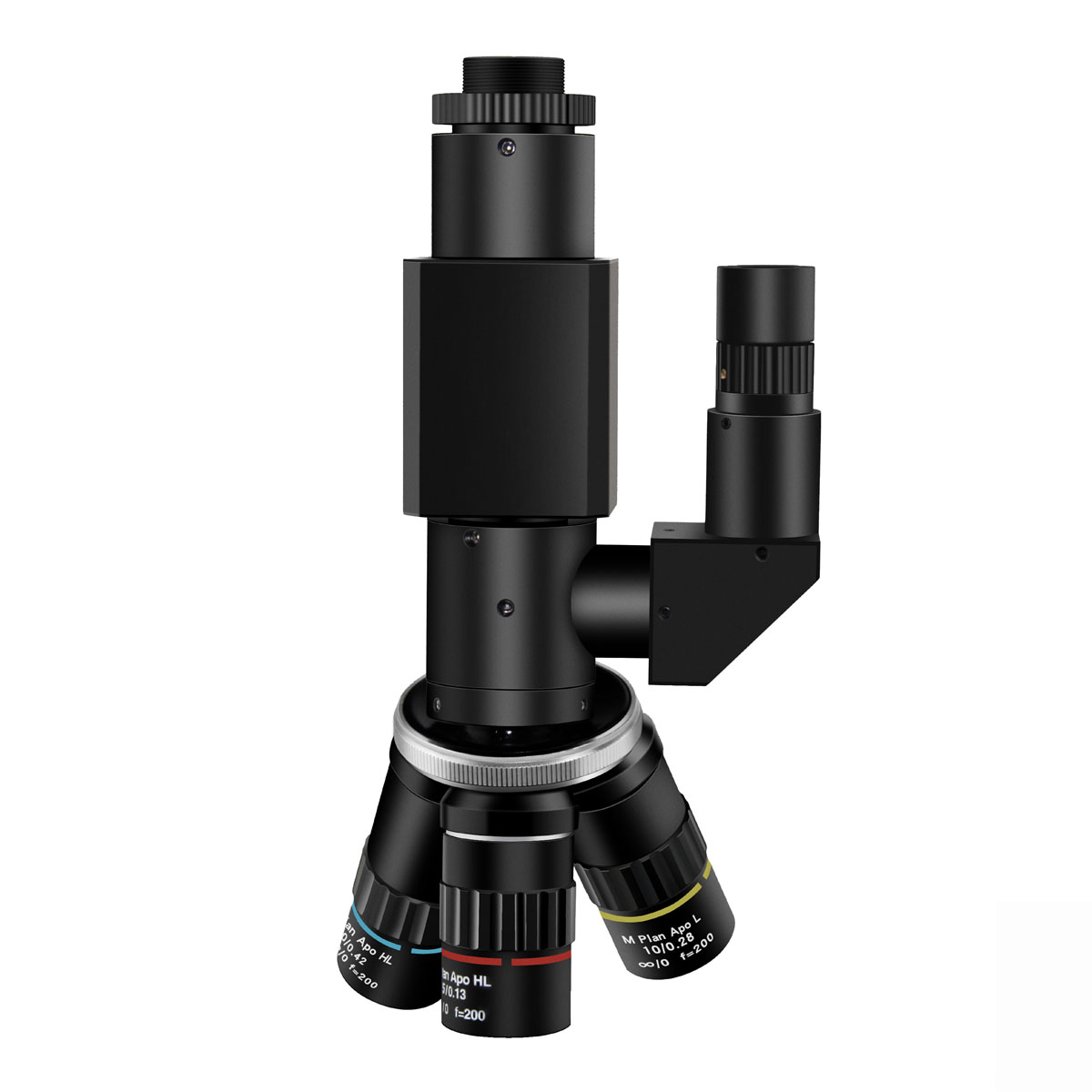

Xtl-503 multipurpose stereoscopic metallographic microscope

Xtl-503 multipurpose stereoscopic metallographic microscope

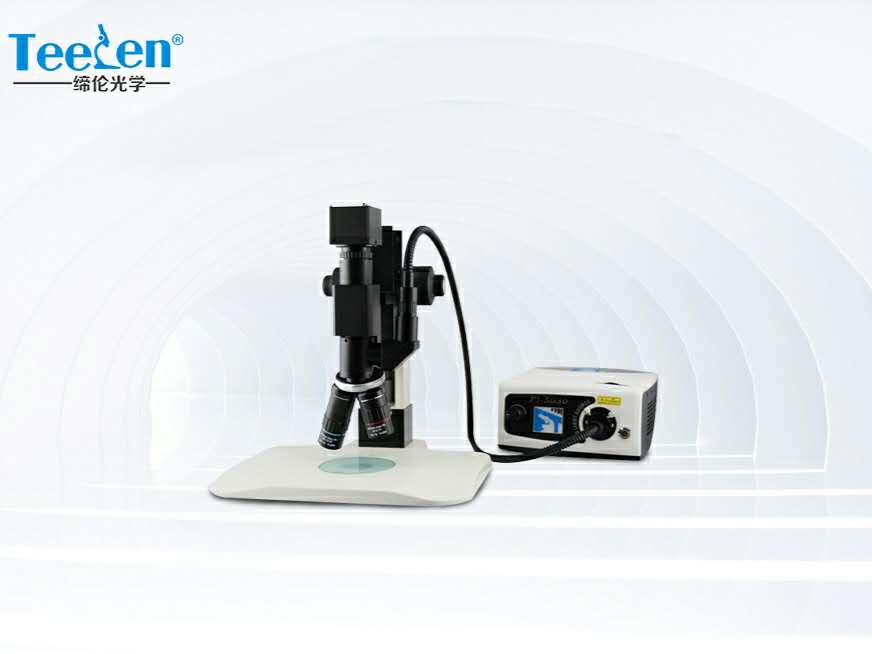

Xtl-503 simple straight tube optical microscope is designed to meet the needs of customers andobserve objects with different high magnification infinity objective lenses.The lens can be directly connected to the C-type interface camera.The main characteristics of this microscope are compatible with the manufacturer's bright field objective lens,coaxial lighting system with maximum contrast,and adjustable light bar can be installed to control the light flux without camera adjustment.At the same time,the operating table can be equipped with movable carrier platform to move the sample.

Xtl-503 multipurpose stereoscopic metallographic microscope

NO

product name

specification

Remarks

●Standard matching

◎Selective matching

FO413

Converter

3-hole converter

FO414

Converter

4-hole converter

FW235U













Infinite flat field achromatic objective

Multiple 5x; numerical aperture 0.12; working distance 26.1mm

FW2310U

Multiple 10x; numerical aperture 0.25; working distance 20.2mm

FW2320U

Multiple 20x; numerical aperture 0.40; working distance 8.8mm

FW2340U

Multiple 40x; numerical aperture 0.60; working distance 3.98mm

FW2350U

Multiple: 50x; numerical aperture: 0.7; working distance: 3.68mm

FW2360U

Multiple: 60x; numerical aperture: 0.75; working distance: 1.22mm

FW2360UA

Multiple: 60x; numerical aperture: 0.7; working distance: 3.18mm

FW2380U

Multiple: 80x; numerical aperture: 0.8; working distance: 1.25mm

FW23100U

Multiple: 100x; numerical aperture: 0.85; working distance: 0.4mm

UC500

Imaging system

5 megapixel imaging system CCD camera (including operation software, photographing, measurement, etc

C1

Micrometer

1 mm objective lens ruler (for computer measurement and calibration of microscope)

LED

Point source

External microscope light source

LED-GQ

Cold light source with optical fiber

External microscope light source (optical fiber cold light source)

F0401

Loading stage

Mobile platform of external desktop microscope (sample observation by object moving)
