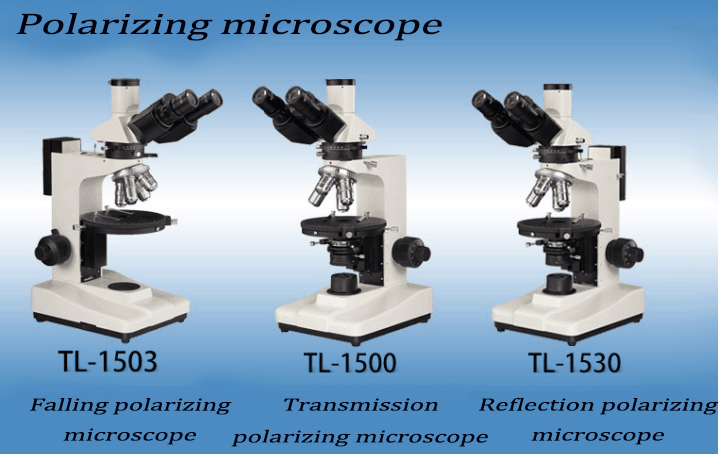

TL-1500Reflection polarizing microscope

TL-1500 Reflection polarizing microscope

  Tl-1500 series penetration and reflection polarizing microscope is a necessary instrument for the research and identification of birefringent substances by using the polarization characteristics of light, which can be used for single polarized light observation, orthogonal polarized light observation and cone light observation.

Widely used in geological, chemical, medical, pharmaceutical and other fields of research and testing, but also for liquid polymer materials, biopolymers and liquid crystal materials observation, is the scientific research institutions and institutions of higher learning for research and teaching of the ideal instrument.



Performance Features:

Optional transmission lighting, falling lighting or through reflection lighting

Equipped with stress-free flat field objective (center adjustable) and large field eyepiece

Coarse fretting coaxial focusing mechanism, coarse fretting elastic adjustable, with limit locking device, fretting cell value: 2 m

Rotating cargo table, 360° equal-graduated, vernier grid value 6', adjustable center, with locking device, working table with vertical effective travel up to 30mm

Wide voltage power supply (85-265V 47-60Hz). 6V20W halogen lighting with adjustable brightness

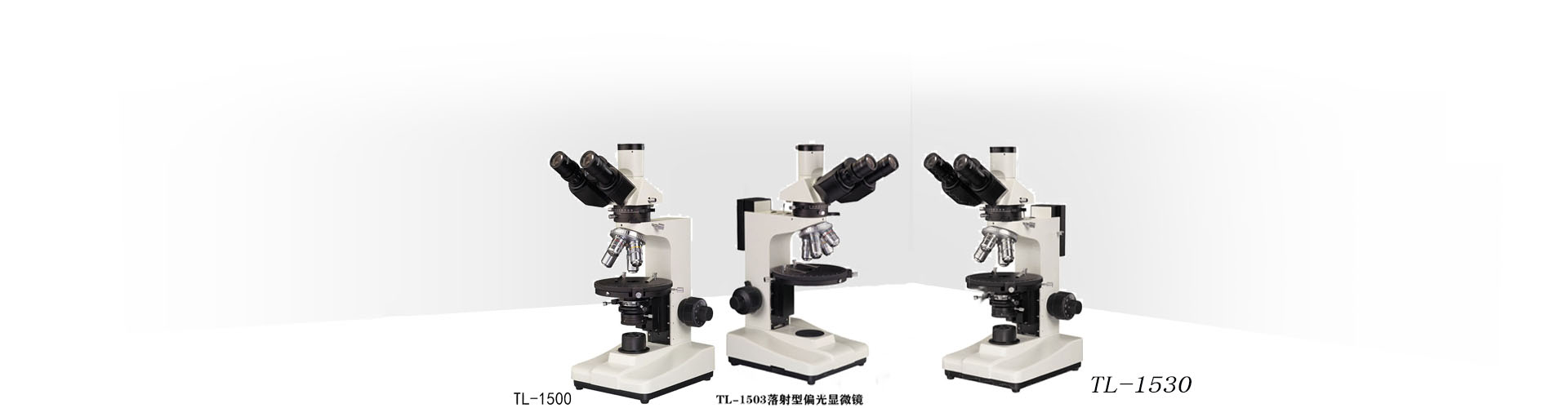

TL-1500 Reflection polarizing microscope

Standard configuration

modelTL-1500 (Transmitted light)TL-1530 (Reflected illumination)TL-1503 (Reflected light)
EyepieceLarge WF10X (Φ 18 mm)
Partition the eyepiece 10X (Φ18mm)  0.10mm/div
Objective lens (center adjustable)Stress free flat field achromatic objective lens (cover glass:0.17mm) PL 4X/0.10Stress free flat field achromatic objective lens (capsless glass) PL 5X/0.12
Stress free flat field achromatic objective lens (cover glass:0.17mm)PL 10X/0.25Stress free flat field achromatic objective lens (capsless glass)PL L 10X/0.25
Stress free flat field achromatic objective lens (cover glass:0.17mm)PL 40X/0.65 (spring)Stress free flat field achromatic objective lens (capsless glass)PL L40X/0.60 (spring)
Stress free flat field achromatic objective lens (cover glass:0.17mm)PL 60X/0.85 (spring)Stress free flat field achromatic objective lens (capsless glass)PL L 60X/0.75 (spring)
Reflected lightUp the analyzer
Can rotate
The light source6V 20W halogen lamp with adjustable brightness
Transmitted lightUp the analyzerCan rotate 360°, there are 0, 90, 180, 270 four readings
collectorHalogen lamps are suitable for lighting
The light source6V 20W halogen lamp with adjustable brightness
Abbe condenserN.A. 1.25 up and down
The eyepiece tube60 ˚ glass with 3 eyeglasses, enabling 100% light transmitting photography
In the indirect tubeBuilt-in polarizer, free switch between normal observation and polarized observation,90° rotation, graduated, vernier value 12'
Push - in Burschner mirror with adjustable center
Lambda compensator
Lambda / 4 compensator
One inch compensator
converterFour holes (outward type ball positioning)
Focusing mechanismCoarse fretting coaxial focus, fretting cell value :2 m, with locking and limiting device
Objective tableRotary object stage, diameter: Φ 150 mm, 360 ° equal scale, vernier scale 6 ', the center is adjustable, with lock device
