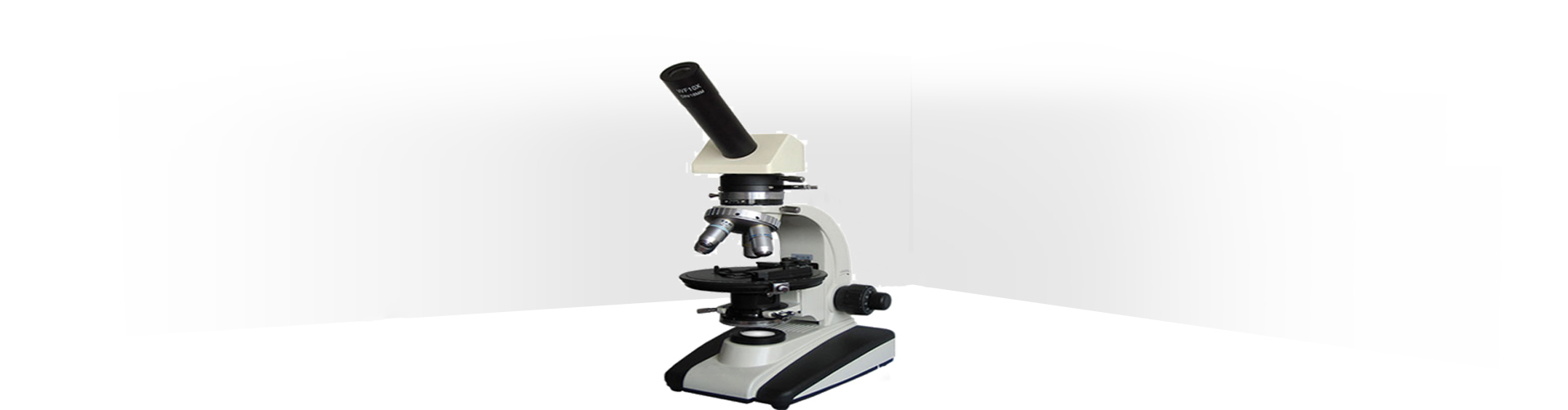

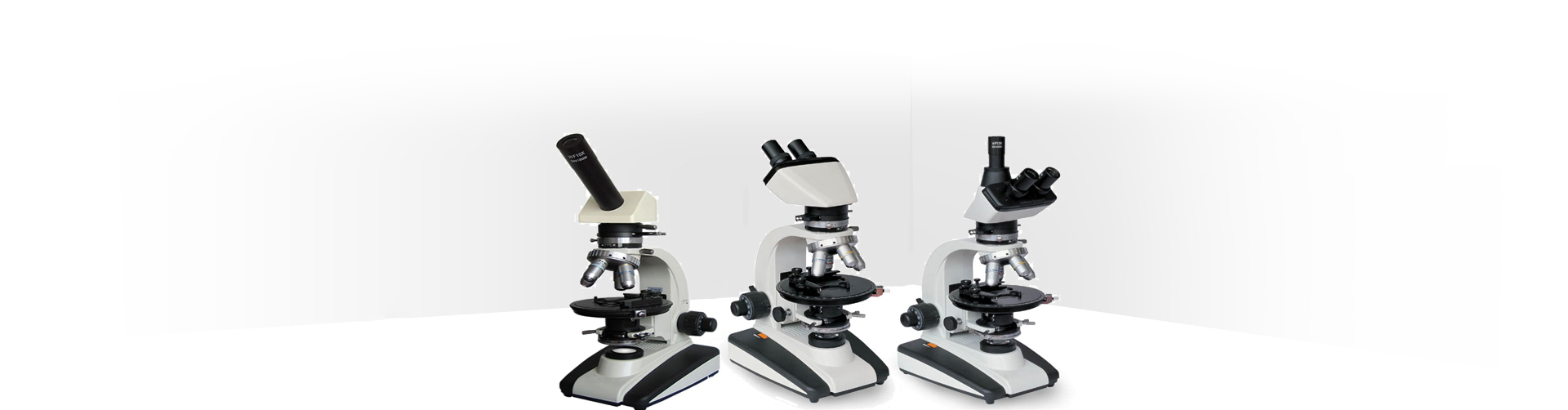

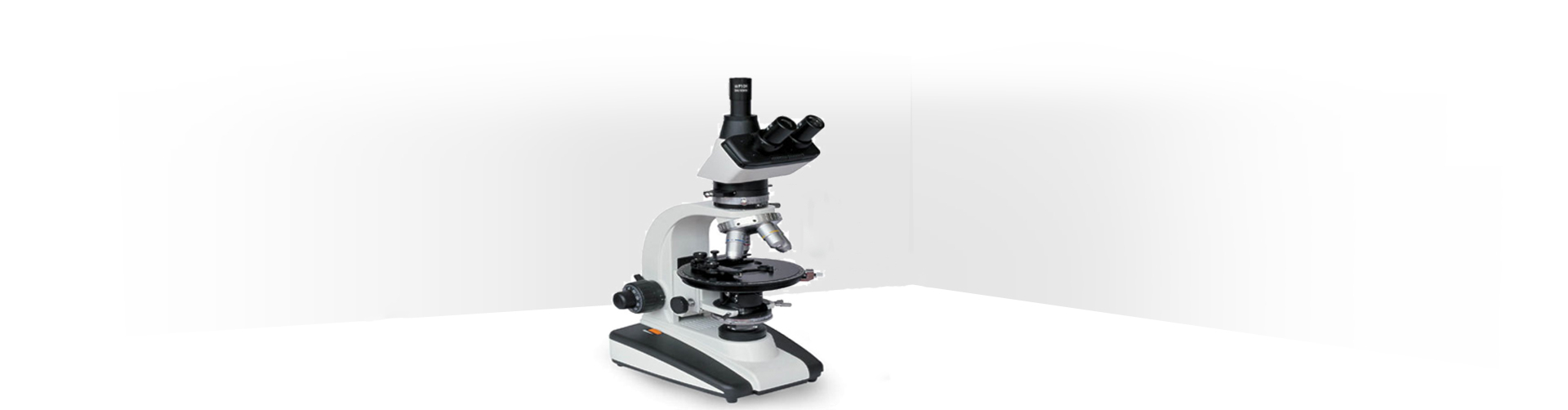

Xsp-59x series polarizing microscope

Introduction to the instrument:

Polarizing microscope is based on the principle that polarizing light can be generated by reflection, refraction, birefringence or scattering under certain conditions. Two polarized filters are added to the optical instrument rotating with each other, so as to obtain comfortable light intensity and improve the contrast between object and background.

0-90° Rotating polarizer:

Appropriate to join in the microscope optical path polarizing filter, in plane polarized light, the road is put in the checked sample or have a glass of internal stress, due to the effect of internal birefringence is divided into two beams of light path interference of light, both interfere with each other when they met, when the glass is not the same as the stress of each part, you can see various shapes of the interference pattern.

To determine the degree of stress on the glass, the birefringence of the material and the determination and test of the grain material.

Microruler 0.01mm, gypsum 1, mica 1/4, quartz wedge

According to the needs of gypsum test plate or 1/4 mica test plate, quartz wedge inserted into the compensator socket for optical determination.

Optional: Note: this model can be added with digital CCD and digital camera, computer and other equipment can be connected!

Adaptive Mirror for digital camera and McL-s Digital Camera:

Telephoto digital camera

Total pixels 12.4 megapixels Effective pixels 10.1 megapixels

Optical zoom factor 10 optical zoom

Operation mode with partial manual function

Sensor type CCD sensor, sensor size 1/2.3 inch

LCD size: 3.0-inch 230-megapixel TFT LCD

ISO sensitivity automatically, 80100200400800160, 0320

Video capture frame count (FPS) 30 frames per second

Video resolution 640×480,1280×720

Storage media MS Duo,MS Pro Duo,MS Pro-HG Duo

Data interface USB 2.0 interface

SONY digital camera special interface, with locking device, with or without ruler two kinds of adaptors for choice.

Digital camera and McL-d adaptor:

Static mode: about 750,000 pixels (16:9), about 1 million pixels (4:3)

Dynamic mode: approximately 670,000 pixels (16:9), approximately 690,000 pixels (4:3)

Optical zoom 25x optical zoom digital zoom 2000x digital zoom

Lens Carl Zeiss lens, Aperture: F1.8-3.2

LCD 2.7-inch, widescreen (16:9), 123,000-pixel touch screen

Sensor type CCD sensor size 1/6 inch

Shutter speed 1/3 to 1/3 of 3500 seconds

The MS Pro Duo memory stick has a built-in 80G hard disk

I/O interface S-video terminal,AV interface,Mini USB interface

SONY digital camera interface with locking device.

Xsp-59x series polarizing microscope

Instrument parameters:
