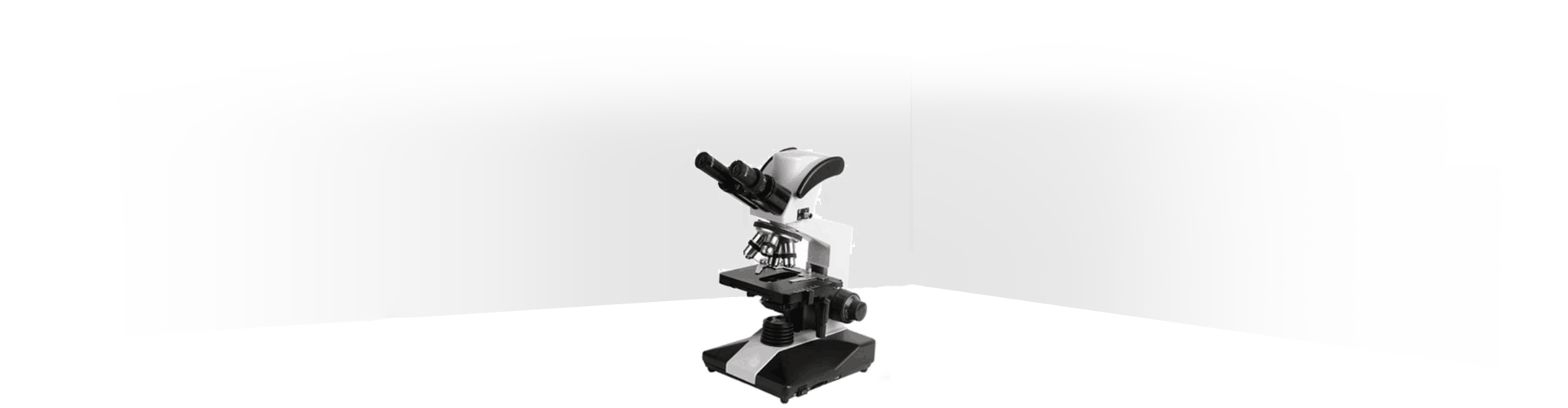

TL2016DMBuilt-in digital biological microscope

Instrument use

Digital biological microscope is widely used in biology, cytology, histology, drug chemistry and other research work.

Digital biological microscope is suitable for health institutions, environmental protection units, laboratories, research institutes and institutions of higher learning.

Instrument is introduced

The built-in digital biological microscope is an experimental model and a scientific research model belonging to the multi-function model, with better optical system and overall quality.

More humanized operation of the whole frame makes users feel more convenient and comfortable. The built-in or external camera channel can conveniently connect the video screen with the computer to observe, save, edit and print practical and static images.

Combined with a variety of software can be more specialized pathology, metallography, measurement, interactive teaching field needs.

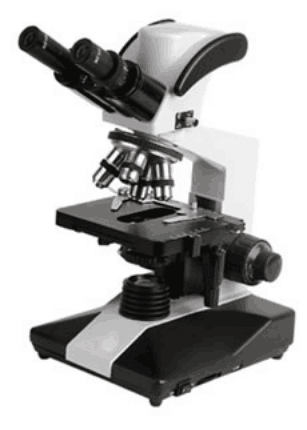

TL2016DMBuilt-in digital biological microscope

Parameter specification:

1. Achromatic objective lens

4X dry mirror numerical aperture 0.10na working distance 37.5mm

The numerical aperture of 10× dry mirror is 0.25NA and the working distance is 7.31mm

40× spring dry mirror numerical aperture 0.65NA working distance 0.63mm

The numerical aperture of 100× spring oil mirror is 1.25NA and the working distance is 0.18mm

2. Wide-field eyepiece

10× field of view diameter 18mm

16× field diameter 11mm optional

3.

Eyepiece tube: binocular terminal, the distance between the pupil is 55-75mm and can be adjusted (a high-quality color digital camera is built in), tilt is 45, and rotate is 360

Resolution: 3 million or 5 million digital chips;

It can shoot and play dynamic videos of microscopic creatures.

Save files in BMP,JPG format;

Random software can preview, measure, compare, count, save, delete;

4.

Converter: four holes

5.

Total magnification: 40× ~ 1000× Optional can reach 64-1600x

6.

Abbe condenser: NA 1.25 Ø 2 - Ø variable light bar with a 30 mm Ø 32 color filter lifting 20 mm adjustment

7.

Focusing mechanism: coaxial coarse fine adjustment, adjustment range: 25mm fine adjustment lattice value: 0.002mm

8.

Double-layer mechanical loading platform :140mmX155mm double-layer mechanical platform, x-y direction movement range: 70X50mm

9.

Lighting system: With variable diaphragm open field transmission lighting brightness adjustable 6V/20W halogen lamp (optional 20W incandescent lamp, 1WLED lamp, rechargeable LED lamp)

10.

The power supply.

110-220 - v / 50 to 60 hz, 20 w

11.

Net weight per set: 5.6kg;
