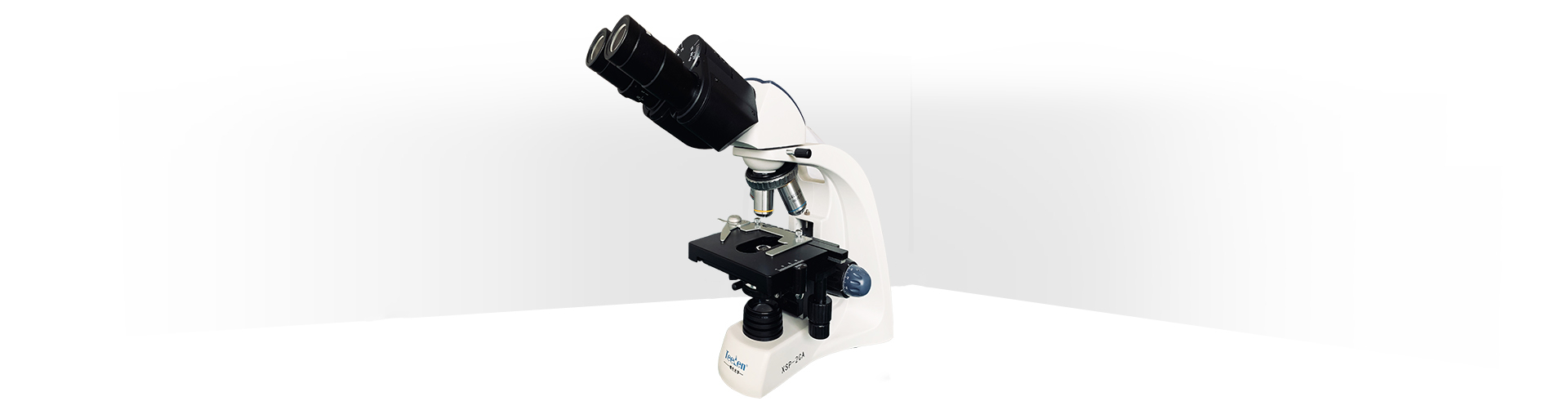

XSP-2CA series biological microscope

XSP-2CA series biological microscope

Purpose and Features:

The microscope can be widely used in biology, bacteriology, histology, pharmaceutical chemistry and other research work. It can be used for clinical trials in medical treatment and for teaching in school laboratories.

The instrument adopts the adjustable Abbe concentrator set, which enables the concentrator to have a wider adjustment range. The machine adopts the LED cold light source light path.

The planetary coaxial coarse and micro focusing device makes the focusing both comfortable and stable and fine fine tuning;

Double-layer mechanical moving platform with reading scale, its coaxial vertical and horizontal adjustment handwheel, make the operation easier.



Ii. Features:

▲195 Achromatic correction System

To improve the optical performance of the XSP-2CA, TEELEN USES a newly designed 195 achromatic objective.

The wide-band coating of the objective lens greatly improves the image contrast, and the image quality does not need to be concerned even when viewing the sections with weak staining.

Bring the eyepiece

The standard high-eye design WF10X/18mm eyepiece has adjustable binocular vision for easy binocular viewing and can also be fitted with a splitter for measurement and calculation.

In addition, the slot design on the eyepiece cylinder can lock and position the eyepiece to avoid falling out, which is convenient for students to operate.

Bring about observation tube

Hinged mirror barrel with 45° tilt.

Pupil distance adjustment range is 55~75mm.

Even after a long period of observation, it can ensure that the user is comfortable to operate without fatigue.

Large field of view (18mm) makes search faster and more convenient.

The three eyepiece can be easily installed with the photomicrography equipment and has a 0:100 beam ratio.

Bring about lighting

The light collector is equipped with a threaded filter cover, which can hold the filter cover and fix the filter to prevent slipping.

Two lighting options are available: 3W LED or optional 6V/12W halogen lamp

Bring about condenser

The xSP-2CA condenser with full Kola lighting is freely adjustable in height, allowing you to view even thicker counting plates, ensuring that you get the best quality of lighting.

▲ Mechanical mobile cargo platform

Long stroke (75 x 50mm), large area (125 x 120mm), anti-corrosion, X and Y rotating handwheel with adjustable tightness, wear resistance and other designs enhance the utility of the platform, and there are two options for left/right operation of the platform.

▲ Mildew Proof design

Mould proof structure design and mould proof treatment during processing ensure the stability of product performance under high temperature and humidity environment, and prolong the service life of microscope and its objective lens.


XSP-2CA series biological microscope

Instrument parameters:



Technical specifications



Technical specifications

XSP-2CA

XSP-2CBA

Observation head

 binocular head (55mm-75mm)


Triocular head (55mm-75mm)


Eyepiece

WF10X / 18

WF16X/11

Objective

4X dry lens numerical aperture 0.10na working distance 37.5mm

10× dry mirror is 0.25NA and the working distance is 7.31mm

40× spring dry mirror numerical aperture 0.65NA working distance 0.63mm

100× spring oil mirror is 1.25NA and the working distance is 0.18mm

Total magnification

 40-1600x

Converters

Converters Tilting four - hole objective lens converters

 Mechanical cylinder

 160 mm

Double layer mechanical carrier

125×120mm Movement range: 76× 50mm Cursor: 0.1mm

Focusing mechanism

Coaxial coarse fine-tuning with focusing handwheel and focusing lock, adjustable range: 25mm fine-tuning grid value: 0.002mm

Abbe condenser

NA 1.25 with variable diaphragm and color filter (ground glass) lifting and adjusting 20 mm

Lighting system

with variable diaphragm open field transmission lighting brightness adjustable LED cold light source (can be upgraded to charging type)

Power supply

110-220 - v / 50 to 60 hz

available

3 million and 5 million pixel CMOS cameras are available
