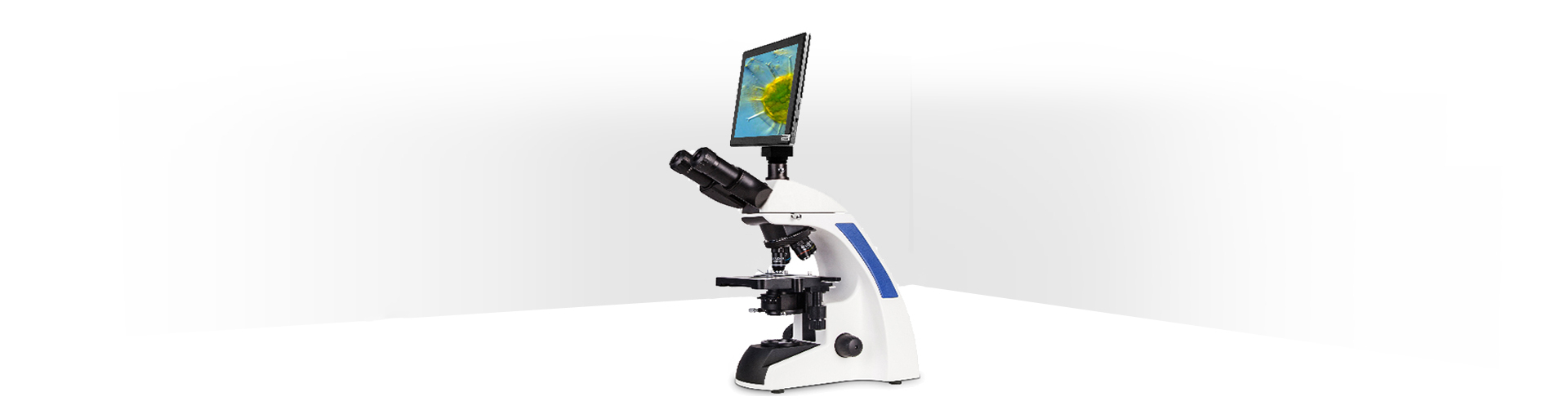

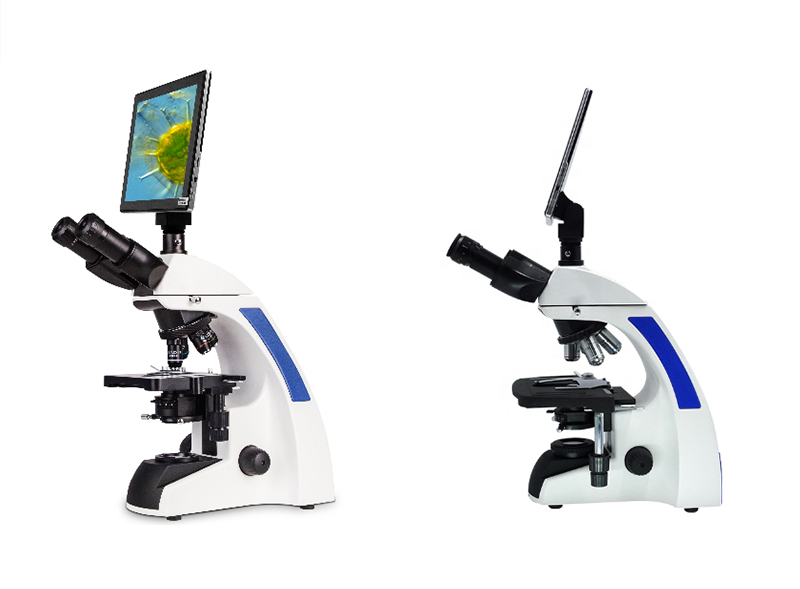

TL3200 series biological microscope

TL3200 series biological microscope

Introduction to the instrument:

TL3200 series of biological microscopes are equipped with infinite far flat field achromatous objective lens and large field eyepiece, with beautiful appearance, clear imaging, wide field of vision, easy operation and other characteristics, which can be widely used in biology, medicine, industry, agriculture and other fields, and is an ideal instrument for medical treatment, teaching, scientific research and other units.


Instrument performance:

Excellent optical system can provide excellent optical performance.

The streamlined design concept, coupled with soft colors, makes the microscope more aesthetically pleasing.

In line with the ergonomic requirements of the ideal design, so that the operation more convenient and comfortable, wider space.

Using high power 3WLED cold light source lighting

Features:

▲ Infinite distance Chromatic Aberration Correction System

In order to improve the optical performance of TL32006, TEELEN adopts the latest design of infinite distant flat field achromatic objective lens.

The wide-band coating of the objective lens greatly improves the image contrast, and the image quality does not need to be concerned even when viewing the sections with weak staining.

Bring the eyepiece

The standard high-eye design WF10X/22mm eyepiece has adjustable binocular vision for easy binocular viewing and can also be fitted with a splitter for measurement and calculation.

In addition, the slot design on the eyepiece cylinder can lock and position the eyepiece to avoid falling out, which is convenient for students to operate.

Bring about observation tube

Hinged mirror barrel with tilt of 30°.

Pupil distance adjustment range is 55~75mm.

Even after a long period of observation, it can ensure that the user is comfortable to operate without fatigue.

Large field of view (22mm) makes search faster and more convenient.

The three eyepiece can be easily installed with the photomicrography equipment and has a 0:100 beam ratio.

Bring about lighting

The light collector is equipped with a threaded filter cover, which can hold the filter cover and fix the filter to prevent slipping.

Two lighting options are available: 12V/30W halogen lamp or optional 3W LED

Bring about condenser

The HEIGHT of the TL32006 condenser with full Cora lighting can be adjusted freely, so that you can observe even on the thicker counting board, ensuring that you get the best lighting quality.

▲ Mechanical mobile cargo platform

The graphite surface of the double-deck movable platform can be simultaneously observed with double glass slides, ultra-long stroke (75 x 55mm), large area (216x 150mm), anti-corrosion, X and Y rotating handwheel with adjustable elasticity, wear resistance and other designs enhance the practicality of the loading platform, and there are two kinds of loading platforms for left/right operation.

▲ Mildew Proof design

Mould proof structure design and mould proof treatment during processing ensure the stability of product performance under high temperature and humidity environment, and prolong the service life of microscope and its objective lens.

▲ Fluorescence device

TL3200 can be used with fluorescence devices.

Four fluorescent filter sets can be installed simultaneously in the fluorescence device.



Different series of filter sets can meet the requirements of different observation applications.



At the same time, mercury lamps with reflectors provide further improvement in brightness, uniformity, and resolution.


TL3200 series biological microscope

Instrument parameters:

The optical system

Infinite distance optical system

TL3200A

TL3200B

TL3200M

Observe the head

Hinged binocular head, 30 degree tilt, pupil distance 48mm-75mm

Hinged triocular head, 30 degree tilt, pupil distance 48mm-75mm

Digital viewing head of 500W pixel, 30 degree tilt, pupil distance of 48mm-75mm

The eyepiece

Large field eyepiece WF10X/F.N.22mm

Large field eyepiece WF16X/F.N.15mm

Large field eyepiece WF20X/F.N.12mm

converter

Inward-facing four - hole converter

Inward - facing five - hole converter

objective

Infinite distance high contrast flat field achromatic objective lens 4X 10X 40X 100X (oil)

condenser

NA1.25

Focusing system

Coaxial coarse fine tuning focal mechanism, fine tuning lattice value 0.001mm, coarse moving stroke 37.7mm per lap, micro moving stroke 0.1mm per lap, focusing range 24mm

Objective table

The graphite surface size of the double-layer movable platform is 216x150mm, and the moving range is 75mmx55mm

Cora lighting

Externally mounted downlighting system 3W/LED lighting





Optional accessories are available

Type C interface 0.5x

Dark field device

Match the device

Industrial camera

A digital camera

Digital adaptor
