P700 Series Biological Compound Microscope

lInstrument Purpose:

P700 series biological microscope is equipped with high-quality achromatic objectives, wide-field eyepieces. It is a product with excellent performance and moderate price, widely used in clinical examinations, schools and healthcare institutions, research institutes, forestry, and agricultural departments.

lInstrument Features:

Lightweight and Stable: An ideal design meeting ergonomic requirements, perfectly combining lightness and stability. Easy to carry and suitable for various environments. Even students can easily assemble and operate it, making operation more convenient, comfortable, and spacious.

Space-Saving: Ingenious design saves desktop space. Rotating the eyepiece tube to the rear minimizes storage space.

Equipped with an excellent optical system, providing outstanding optical performance.

All lenses are coated with an anti-blue light coating that also provides anti-fungal protection and anti-reflection.

lInstrument Parameters:

Optical System: Infinity corrected optical system, parfocal distance: 45mm, 0.17 mm coverglass correction, effectively eliminates chromatic and spherical aberrations.

*Eyepiece Configuration: Equipped with high-eyepoint wide-field eyepieces WF10X/22mm; diopter adjustable ±5, eyepiece tube Φ30mm, eyepiece tube length: 160mm.

*Eyepiece Tube: Binocular tube, 30° tilt, interpupillary distance 48~76mm, eyepoint height adjustable in 2 levels; trinocular tube (beam split ratio 50:50), 30° tilt, interpupillary distance 48~76mm.

*Objectives:

Infinity-corrected flat-field achromatic objectives, with characteristics: parfocal, antifungal and anti-reflection, total 4 pieces:
Infinity-corrected flat-field achromatic objective 4X, numerical aperture: 0.13, working distance 16.4mm;
Infinity-corrected flat-field achromatic objective 10X, numerical aperture: 0.30, working distance 2.9mm;
Infinity-corrected flat-field achromatic objective 40X(s), numerical aperture 0.75, working distance 0.34mm;
Infinity-corrected flat-field achromatic objective 100X(s.oil), numerical aperture 1.3, working distance 0.2mm;

*Nosepiece: Inward-facing 4-hole nosepiece (using precision ball bearing mechanism with ribbed grip to ensure smooth and accurate alignment, with a positioning lock device).

*Stage: Double-layer mechanical movable stage with calibrated specimen clips, size 220X148mm, moving range 75X55mm.

*Focusing Mechanism: Coaxial coarse and fine focusing, adjustable tension-type focusing knobs on both sides, equipped with: limit tension control, and with a device to prevent sliding down. Focusing range: 0-35mm, fine division value: 0.002mm.

*Condenser: NA=1.25 Abbe condenser, with built-in aperture iris diaphragm, with filter, and filter slot, supports brightfield and darkfield observation.

*Illumination: High-brightness white 3W LED light source.

*Power Input: Universal 100-240VAC single-phase, maximum current 0.48A, 50-60Hz, DC output 5V.

*Back Panel: Designed with a portable handle for easy relocation.

Net Weight: 9.7kg

Configuration List:

Main Unit: 1 piece

WF10X Eyepieces: 1 pair

Objectives: 4X, 10X, 40X, 100X, one each

Power Adapter: DC12V, 1 piece

Included Documents: Instruction manual, certificate of conformity, warranty card, dust cover, one each

lInstrument Details:

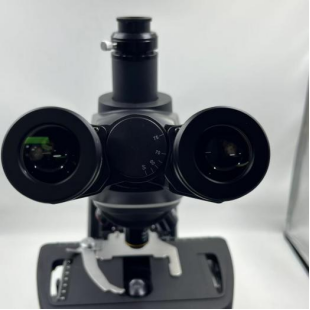

Observation Head

Equipped with binocular or trinocular observation heads, which are usually detachable and replaceable to accommodate different observation needs. This flexibility allows users to choose the appropriate observation head based on specific application scenarios. The trinocular head can also be equipped with an imaging system for use.

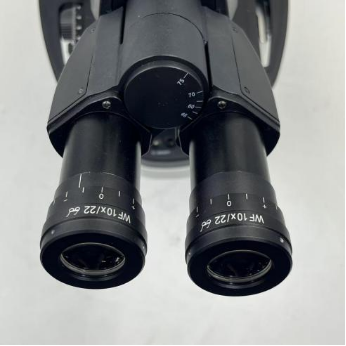

●High-Eyepoint Wide-Field Eyepieces

The adjustable interpupillary distance range is 48-76mm, ensuring precise settings for each user based on their individual conditions. The high-eyepoint design allows adjustable diopter for both eyes, making binocular observation easier and providing a more comfortable user experience.

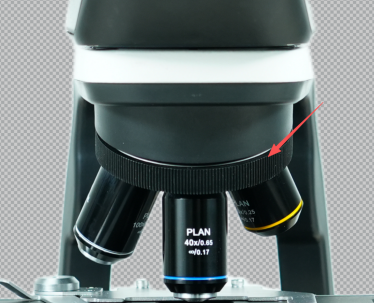

‌●Infinity-Corrected Flat-Field Achromatic Objectives and Nosepiece

This series of objectives adopts novel design concepts, offering a wider field of view and more realistic color reproduction. They feature an aesthetically pleasing appearance, convenient operation, and meet ergonomic requirements, making operation more comfortable and convenient.

The inward-facing 4-hole nosepiece greatly enhances the flexibility of objective use, with simple and quick operation. It reduces errors caused by frequent objective changes and improves observation stability. It provides clear images, suitable for high-precision observation and experiments.

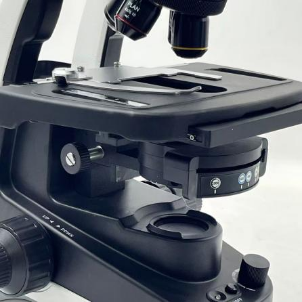

●Double-Layer Mechanical Stage

Stably supports and secures samples, ensuring the position and shape of the sample remain stable during observation. Equipped with a calibrated scale for easy specimen positioning and measurement, improving experimental accuracy and efficiency. Features corrosion resistance and wear resistance.

●Abbe Condenser

The Abbe condenser has excellent light-gathering performance, effectively concentrating light. Its simple structure and high light transmittance make it suitable for brightfield microscope observation. Its high numerical aperture provides higher resolution and deeper depth of field, suitable for high-precision observation. Equipped with a variable aperture diaphragm, it offers users more observation and experimental options.

●Illumination System

Integrated LED light source specifically for microscopes, using high-brightness LED beads to provide sufficient illumination intensity, ensuring sample details are clearly visible. It delivers uniform lighting, reducing shadows and uneven brightness, thereby improving observation accuracy and detail representation. Moreover, LED lights are more environmentally friendly, meeting modern laboratory environmental requirements.

●Focusing Knobs

Coaxial coarse and fine focusing, with fine-focusing mechanisms on both sides of the stage control knobs for precise focusing. This allows users to easily switch between coarse and fine adjustments during observation, improving work efficiency. The coaxial design makes operation more intuitive and convenient, allowing users to more easily control the force and direction of focusing, reducing operational fatigue.

●Rear Storage

This feature effectively stores and protects the power cord from external damage. This not only extends the cable's lifespan but also ensures the safe and stable operation of the equipment. It effectively reduces cable tangling and damage, thereby avoiding unnecessary maintenance and replacement costs.

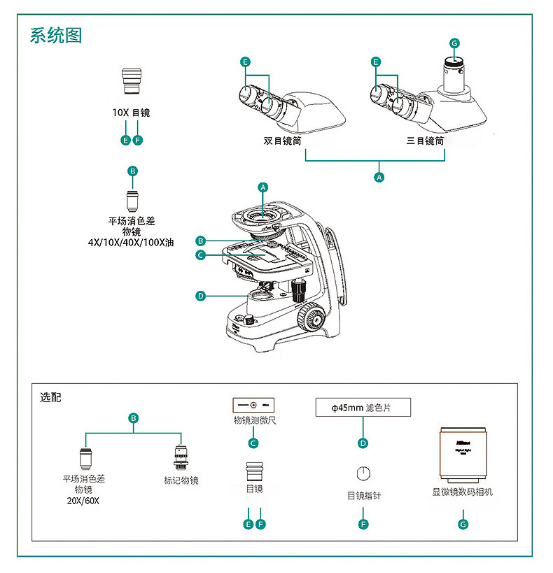

lProduct System Dimension Diagram:

lProduct Technical Specifications:
