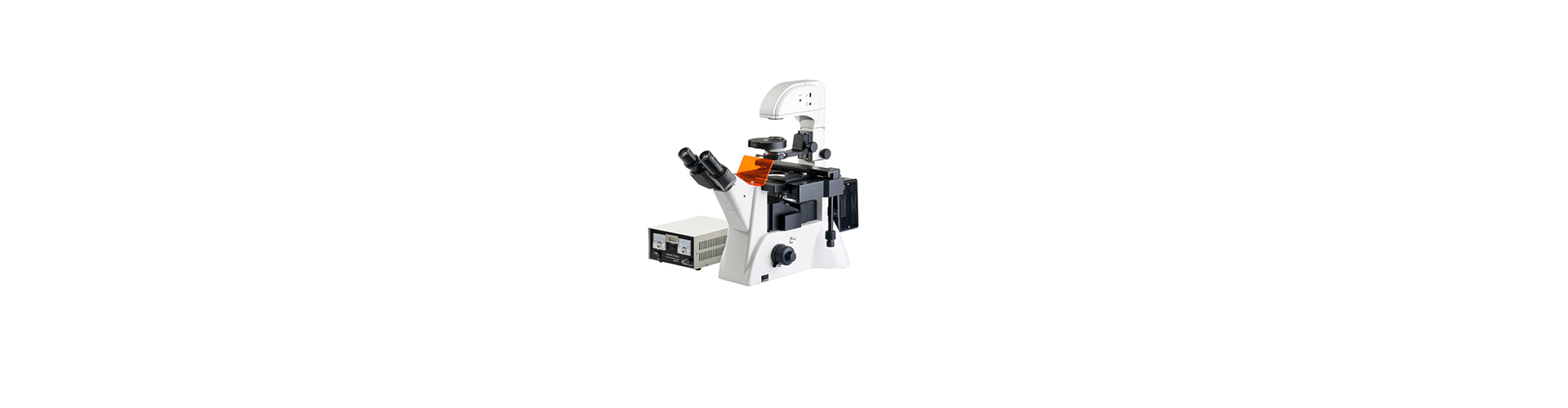

Dxy-2 inverted fluorescence biological microscope
Introduction of instrument
Dxy-2 inverted fluorescence microscope is composed of a falling fluorescence microscope system and an inverted biological microscope system. It adopts an excellent infinite distance optical system and is equipped with a long working distance flat field objective lens and a large field eyepiece.
The compact and stable high rigid body fully embodies the vibration proof requirement of microoperation.
The rotary pendulum in and out focusing system can be used for observation of non-contaminated cultured cells in high culture dishes or cylindrical fluses.
The falling-fluorescence microscopy system is designed to be modular, and you can page-adjust the lighting system securely and quickly to page-filter components.
The product can be used in the microscopic observation of cell tissue, transparent liquid tissue, also can be used in biopharmaceutical, medical detection, disease prevention and other fields of fluorescence microscopy observation.
Instrument configuration
Technical specifications | ||||||
The eyepiece | WF10X view (view Φ 22 mm) | |||||
Centering telescope | ||||||
Infinite distant flat field achromatic objective lens | objective | PLL 10X0.25 Working distance：4.3 mm，Thickness of cover glass：1.2mm. | ||||
PLL 20X0.40 Working distance：8.0 mm，Thickness of cover glass：1.2mm. | ||||||
PLL 40X0.60 Working distance：3.5 mm，Thickness of cover glass：1.2mm. | ||||||
Match the objective | PLL 10X0.25 PHP2 Working distance：4.3 mm，Thickness of cover glass：1.2mm. | |||||
PLL 20X0.40 PHP2 Working distance：8.0 mm，Thickness of cover glass：1.2mm. | ||||||
PLL 40X0.60 PHP2 Working distance：3.5 mm，Thickness of cover glass：1.2mm. | ||||||
The eyepiece tube | Wine type with tilt of 45˚ and adjustment range of pupil distance of 53~75mm. | |||||
Falling fluorescent lighting system | Power box 110V/230V optional | |||||
Mercury lamp of 100 w/DC | ||||||
Fluorescent color filter set | ||||||
group | type | Excitation wavelength | Emitter wavelength | |||
Uv + purple | uv | 330nm~400nm | 425nm | |||
purple | 395nm~415nm | 455nm | ||||
Blue + green | blue | 420nm~485nm | 515nm | |||
green | 460nm~550nm | 590nm | ||||
Focusing mechanism | Coarse fretting coaxial, with locking and limiting device, fretting cell value :2 m. | |||||
converter | Five-hole converter | |||||
Objective table | Fixed load table size: 227mmX208mm. | |||||
Glass slide round table size: Ф 118 mm. | ||||||
Mechanical moving size, moving range: longitudinal 77mm, transverse 114mm, | ||||||
Petri plate 1 | Within the slot size: 86 mm (wide) X129.5 mm (length), adaptive petri dish Ф 87.5 mm | |||||
Petri plate 2 | Within the slot size: 34 mm (wide) X77.5 mm (length), adaptive petri dish Ф 68.5 mm | |||||
Petri plate 3 | Internal groove size: 57mm (width) X82mm (length) | |||||
Transmission lighting system | The working distance of the rotary phase liner from the condenser is 55mm | |||||
6V30W halogen lamp with adjustable brightness | ||||||
Ground glass, blue and green filters | ||||||
