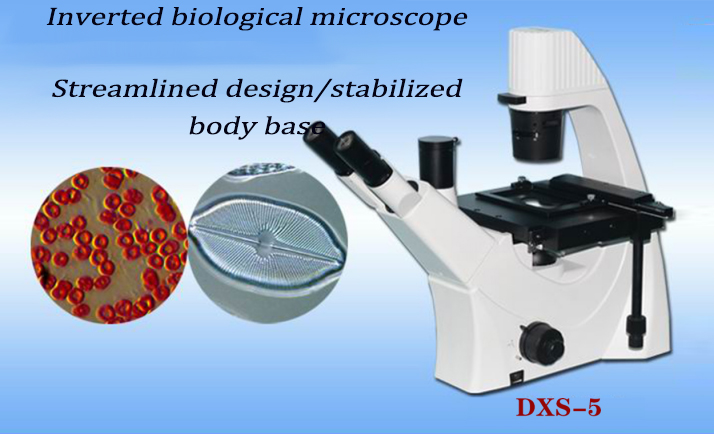

DXS-5Inverted biological microscope
Introduction to the instrument:
The DXS-5 inverted microscope is an inverted biological microscope that featuring an advanced optical system with anti fungal coating, delivering exceptional optical performance. Its streamlined design and compact , stable high-rigidity body fully meet the vibration resistance requirements of microscopic operations. The ultra-long working-distance condenser
system enables contamination-free observation of cultured cells in high-plate or cylindrical flasks. The illumination system is designed with thermal dissipation and safety in mind, while ergonomic principles and metal brackets ensure convenient, comfortable, and safe operation with expanded workspace. The phase-contrast until can be added to the optical path for phase-contrast microscopic observation. This instrument is suitable for microscopic observation of cellular tissues, transparent liquid tissues, and microscopic observation of cultured tissues in plates. It is applicable in research institutions, universities, healthcare, inspection and quarantine, as well as agriculture and dairy industries.
DXS-5Inverted biological microscope
Instrument parameter table
Main parameters | Total magnification | 40X~400X (standard configuration) | |||||||
Mechanical tube length | ∝ | ||||||||
Conjugate distance of objective lens | ∝ | ||||||||
Eyepiece | pan-ocular | WF 10X | Field of view: F22mm | ocular interface：Ф30mm | Parfocal distance：10mm | Refractive power adjustment: ± 5% | |||
to the telescope | |||||||||

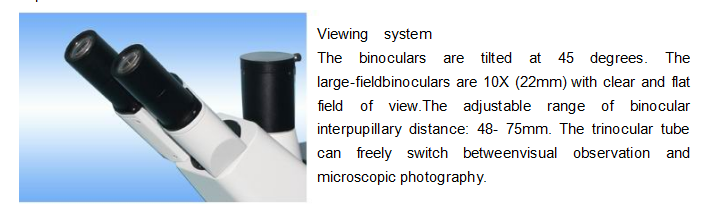

eyepiece sleeve | The device features a 45 tilt angle with binocular pupil distance adjustment ranging from 48 to 75mm, and an eye point height of 400mm above the tabletop. | ||||||||
Long Working Distance Flat field Phase Contrast Lens | amplified factor | numerical aperture | operating distance（mm） | Cover slip thickness（mm） | remark | ||||
4X | 0.25 | 19.8 | 1.2 | standard configuration | |||||
10X | 0.25 | 4.27 | 1.2 | PHP2 | |||||
20X | 0.45 | 8.0 | 1.2 | PHP2 | |||||
40X | 0.65 | 3.5 | 1.2 | PHP2 | |||||
changer | Four hole converter | ||||||||
focusing mechanism | Manual coaxial and fine adjustment of coaxial movement on both left and right sides,with fine adjustment, range:2 μ, adjustable coarse adjustment, equipped with locking and limit devices,effective focusing stroke:11mm | ||||||||
collecting mirror | Long working distance condenser lens,with a working distance of 7omm,equipped with a plate-type contrast device | ||||||||

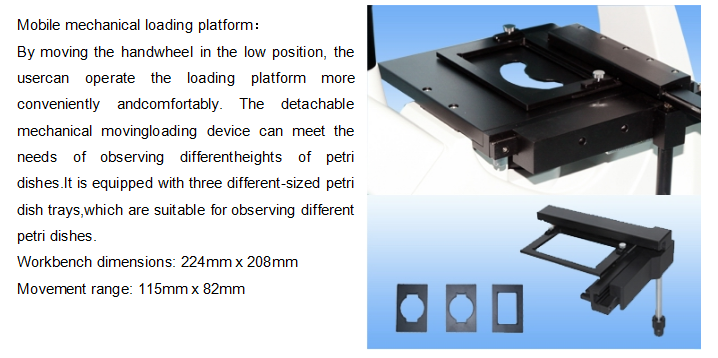

objective table | Movement range (horizontal X vertical): 115mmX82mm, The movable ruler is detachable .Metal and glass inserts are included.When not using the tray,it can be adapted to a 96-well plate culture dish. | ||||||||
Petri dish plate | 86mm (width) X129.5mm (length), compatible with round Petri dishes (φ 87.5mm） | ||||||||
34mm (width) X77.5mm (length),compatible with round Petri dishes (φ68.5mm） | |||||||||
57mm (width) X82mm (length) | |||||||||

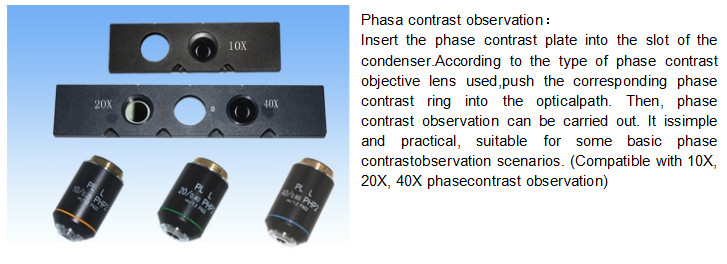

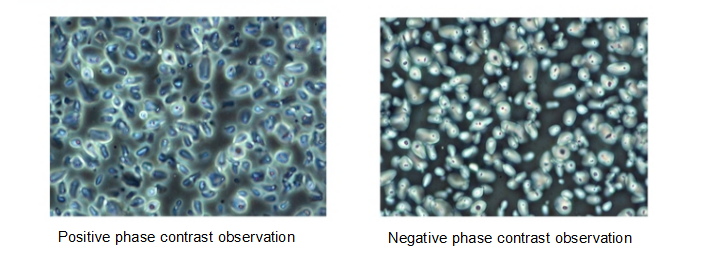

contrast system | Phase contrast | Sliding-type phase-shifting condenser lens,with the center of the phase-shifting ring adjustable | |||||||

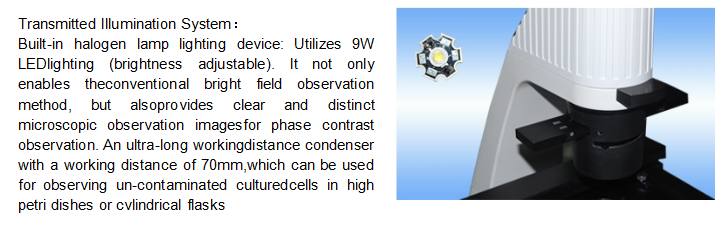

lighting system | Kohler Lighting 9W LED, with adjustable brightness | ||||||||
filter | Matteglass, blue filter | ||||||||
Calibration tool | Internal hex wrench (M4, M5) | ||||||||

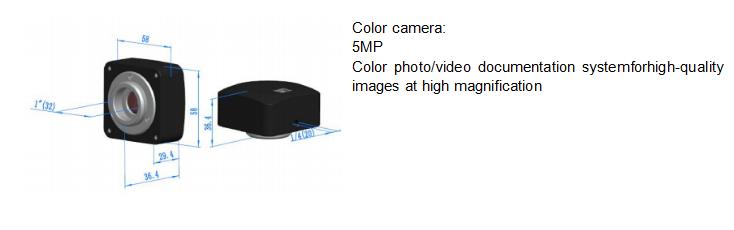

image-forming system | 5MP camera with dual USB3.0 ports. Main functions:photography, measurement, depth of field expansion, image stitching, etc. | ||||||||
