一、仪器简介：
1.人机工程学设计，减轻操作人员的工作压力感，屏幕正前方40cm 放置，角度可调节。更是简约化无线鼠标操作。
Ergonomic design,reduce the pressure of the operator,40cm in front of the screen, adjustable angle. Simplified wireless mouse Operation.
2. 产线简便化设计，CCD,LCD 显示屏, LED 照明，一体式内置设计。
Simple design of production line,CCD,LCD display,LED lighting, integrated built-in design.
3.更清晰的光学观察效果，高清显示，分辨率达到1080P。
Clear optical observation effect,high-definition display,resolution of 108
4.强大的软件操作，可以测量，存储，拍照，比对。
Powerful software operation,can measure,store,photograph,
compare.
5.放大率：标准配置为10.3X---73.6X; 可以扩展到5.1X---368X。
Magnification:The standard configuration is 10.3X-73.6X; it can be extended to 5.1X-368X.
6.支持2D和3D两种观察方式，360度旋转全方位3D观察，大视野，大景深。
It supports 2D and 3D observation methods,360 degree rotation,omni-directional 3D observation,large field of view and large depth of field .

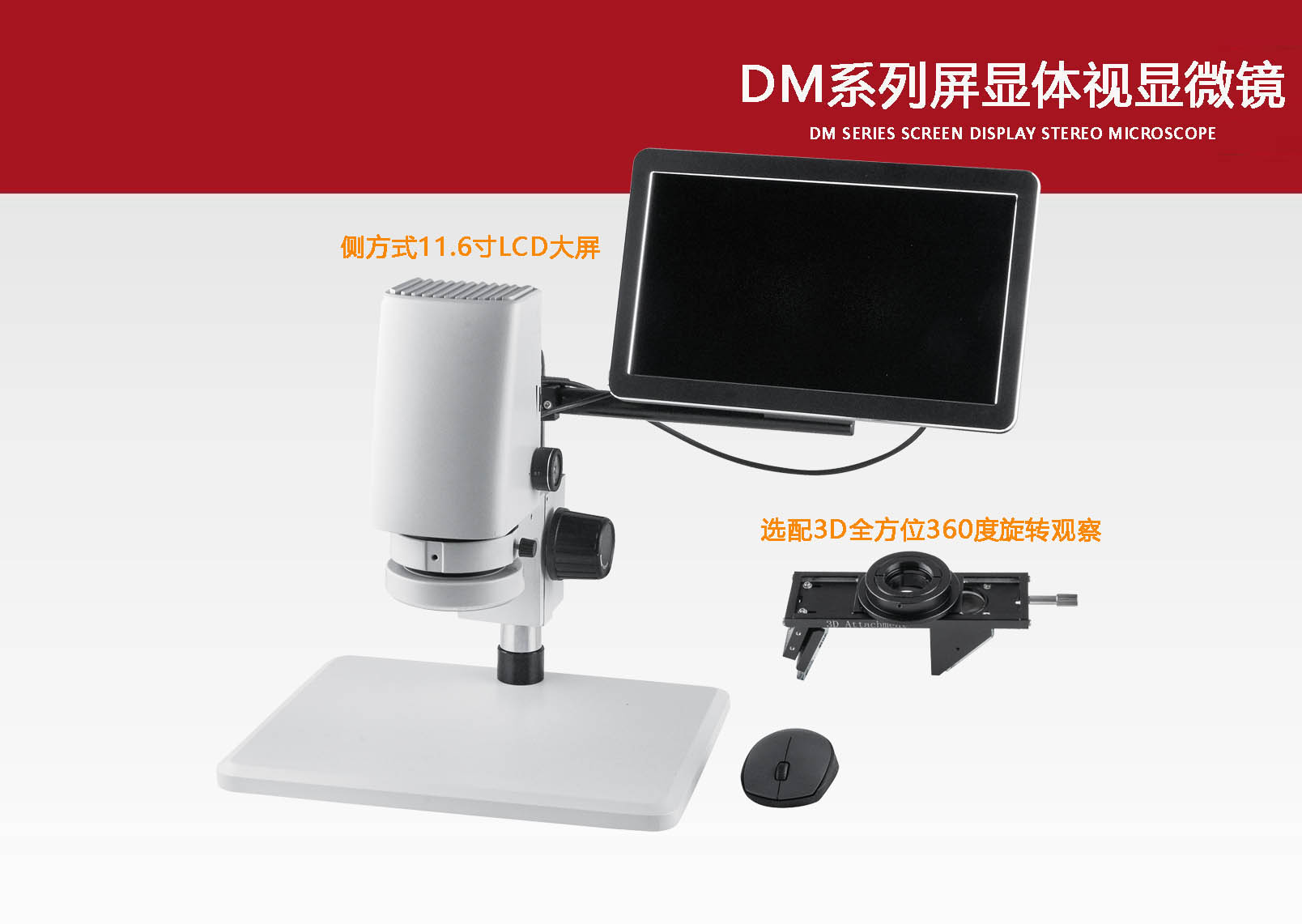

DM750视频测量显微镜
规格 Specification
视频测量显微镜 | DM750 | |
放大倍数 | 10.3X--73.6X | ● |
Magnification | ||
目镜 | 0.4X(选配1X) 0.4X(1X for option) | ● |
Eyepiece | ||
物镜 | 0.7X---5X连续变倍 0.7X-5X Zoom Range | ● |
Objective | ||
变倍比 | 01:07.1 | ● |
Zoom Ratio | ||
辅助物镜 | 0.5X,0.7X,2X供选择 For option | ◯ |
Auxiliary Lens | ||
输入 | 100-240V | ● |
Input | ||
输出 | 12V/2A | ● |
Output | ||
工作距离 | 100mm | ● |
Working Distance | ||
头外型尺寸 | 197mmX192mmX95mm | ● |
Head Size | ||
HDMI高清连接线 | HDMI合金板，内置芯片，同步输出 | ● |
HDMI Cable with Ethernet | HDMI Alloy Plate,Built-in chip,Synchronized output | |
显示屏 | 11.6英寸LCD屏 11.6 inch LCD screen | ● |
Display | ||
鼠标 | 无线鼠标 Wireless mouse | ● |
Mouse | ||
底座 | B11底座 B11 Base | ● |
Base | ||
适配器 | 输入Input100-240V, 输出Output12V/2A | ● |
Adapter | ||
3D镜头 | 360度旋转全方位3D观察 | ◯ |
lens | 360 degree rotation omni-directional 3D observation | |
注：●为标准配置 ◯为选购配件
Note:●Standard Outfit ◯ Optional
