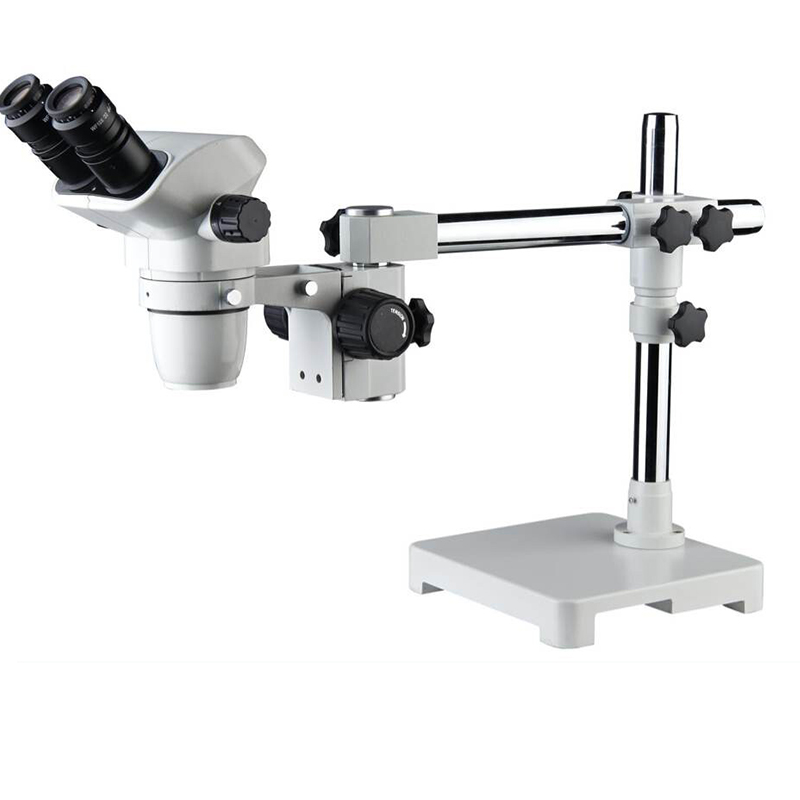

ST6012-STL1 Universal time-invariant ploidy visual microscope
Introduction to the Instrument:
ST60 series of fixed file variable magnification visual microscope features good image quality, high resolution, large depth of field, wide field of view, wide clear range and long working distance, convenient and comfortable operation, providing high quality optical system and durable and reliable operation mechanism.
The new design shows good resolution and real color image, meeting the high precision requirements of modern biomedicine, scientific research, modern electronic industry online detection and other science and technology industry fields.
Performance Features:
■ Lens barrel: 45 degree tilt, 360 degree rotation of binocular head, pupil distance adjustment range 55-75mm, single visual adjustable range of plus or minus 5 diopters
Eyepiece: the use of high - point wide-angle eyepiece, for the convenience of wearing the eye observer.
So I'm going to switch gears, 2x over 4x, 1x over 2xand 1x over 3x
■ Working distance: Super long working distance up to 100mm, providing users with a larger working space.
■ Field light source: Various types of electric lighting system, halogen lamps and external ring fluorescent lamps.
LED lighting.
■ Focusing mechanism: Adjustable focusing handwheel, lifting range 49mm, vertical doubling handwheel, high repeatability accuracy
■ Optical components: The optical components are coated with a special film to form a clear, bright and flat image in the field of view
■ Variable objective lens: The combination of shifting variable objective lens with 2X/4X, 1X/2X and 1X/3X is optional
■ Standard magnification :10X/20X, 10X/30X, 20X/40X; optional auxiliary objective lens and other magnification eyepieces; magnification range: 5X~160X
■ Working distance: the standard working distance reaches 100mm, creating enough space for use
■ Eyepiece: 10X wide-field eyepiece, 20mm field of view, high eye-point design, more suitable for searching and observation
■ Observation head: 45 degrees tilt, double tube visual adjustable, easy to operate and comfortable, long time use without fatigue

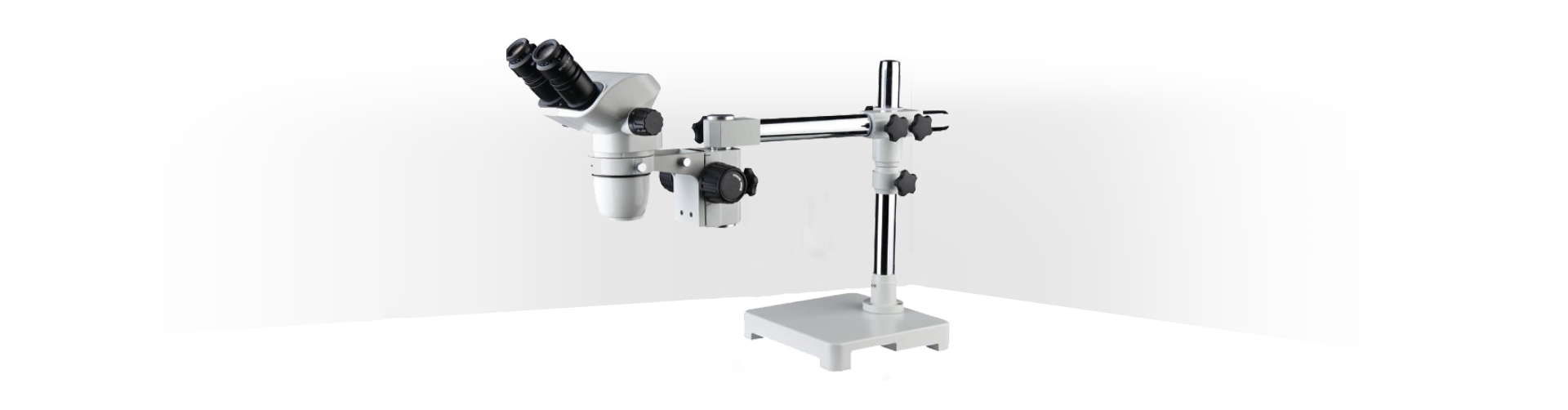

ST6012-STL1 Universal time-invariant ploidy visual
Instrument parameters:
magnification | Standard configuration: 20X/40X optional eyepiece and auxiliary objective lens can be extended to 5X ~ 160X, with double vertical shift |
objective | 1X、2X、3X、4X |
The eyepiece | High eye-point wide field eyepiece WF10X/20mm |
High eye-point wide field eyepiece WF15X/15mm | |
High eye-point wide field eyepiece WF20X/10mm | |
Observe the head | Binocular observation head, 45° tilt, 360° rotation, pupil distance 54~76mm, bilateral visual adjustment (±5） |
Working distance | Standard configuration: 100mm (effective distance) Optional auxiliary objective lens can be extended to 30mm-165mm |
The auxiliary lens | 0.5X/165mm、1.5X/45mm、2X/30mm |
Focusing bracket | Adjustable tension of focusing handwheel, lifting range 50mm |
The base | STL1 single-arm universal support |
Other optional | The mobile platform |
Optical parameters:
Objective | Eyepiece | ||||||
WF10X/20 | WF15X/15 | WF20X/10 | working distance | ||||
magnification | view field | magnification | view field | magnification | view field | ||
1x | 10x | 20mm | 15x | 15mm | 20x | 10mm | 100mm |
2x | 20x | 10mm | 30x | 7.5mm | 40x | 5mm | |
3x | 30x | 7.5mm | 45x | 5mm | 60x | 3.3mm | |
4x | 40x | 5mm | 60x | 3.3mm | 80x | 2.5mm | |
