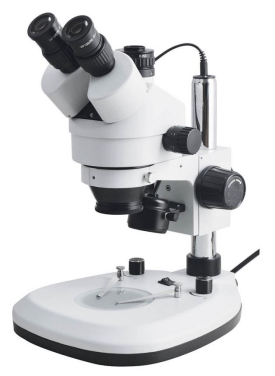

XTL-205 Continuous Zoom Stereomicroscope
1. Detailed description:
The XTL-205 series continuous zoom stereomicroscopes deliver premium optical systems and durable, reliable mechanisms. Featuring an innovative design that maximizes resolution and authentic color imaging, these microscopes meet the precision demands of modern biomedical research, scientific investigations, online quality control in electronics manufacturing, and other high-precision technological applications. Designed for observing three-dimensional structures and intricate details, they ensure ergonomic comfort for operators during extended use.
II. Instrument Overview:
1. Stereomicroscope, solid-state microscope, or anatomical microscope
2. Continuously adjustable magnification for upright 3D imaging
3. Microscopic observation: Eye point height ≥390 mm, field depth ≥10 mm, and width ≥35mm
4. Pupillary distance linkage and adjustable binocular refractive power
5. Long working distance and large depth of field for torque adjustment
6. Dual-color dimmable transparent reflector lighting with high-brightness long-life LED and halogen lamps

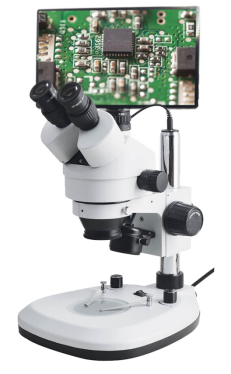

7. Integrated microscope and operation display screen
8. Equipped with two independent optical path lens systems, allowing free switching between visual observation and video observation.
9. Zoom objective: 0.7X-5X; eyepiece: WF10X23mm; magnification range: 7-50x continuous zoom
III. Specifications:
7-50x Continuous Zoom Stereo Microscope Optical System: Cross-Optical System | XTL-205 | |
Optical System | cross optical system | ● |
Observation Tube | Trinocular stereo body; Interpupillary distance adjustment range: 50mm-75mm; 45° inclined, 360° rotatable binocular; Diopter adjustable ±5 diopters | ● |
Eyepiece | WF10X, field of view number 23mm | ● |
Objective | Zoom objective 0.7X - 5X | ● |
Zoom Ratio | 01:07.1 | ● |
Total Magnification | Standard configuration: 7X-50X | ● |
Working Distance | 110mm, maximum working distance ≥300mm | ● |
Interpupillary Distance | 50mm-75mm | ● |
Focusing Bracket | Inner diameter: 76mm; Post aperture: 32mm | ● |
Stage Plate | Black and white workboard, frosted glass workboard | ● |
Stand | BL3 base, post stand; Upper and lower LED illumination, brightness adjustable | ● |
Display configuration | 10.1-inch all-in-one touchscreen with 5 MP. Features: 1/2.5" sensor, 2592×1944 resolution, 5MP, 12fps frame rate,>41dB signal-to-noise ratio, and WiFi/Bluetooth connectivity. | ● |
