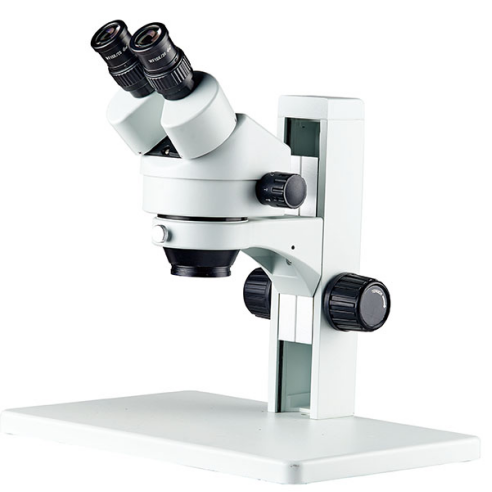

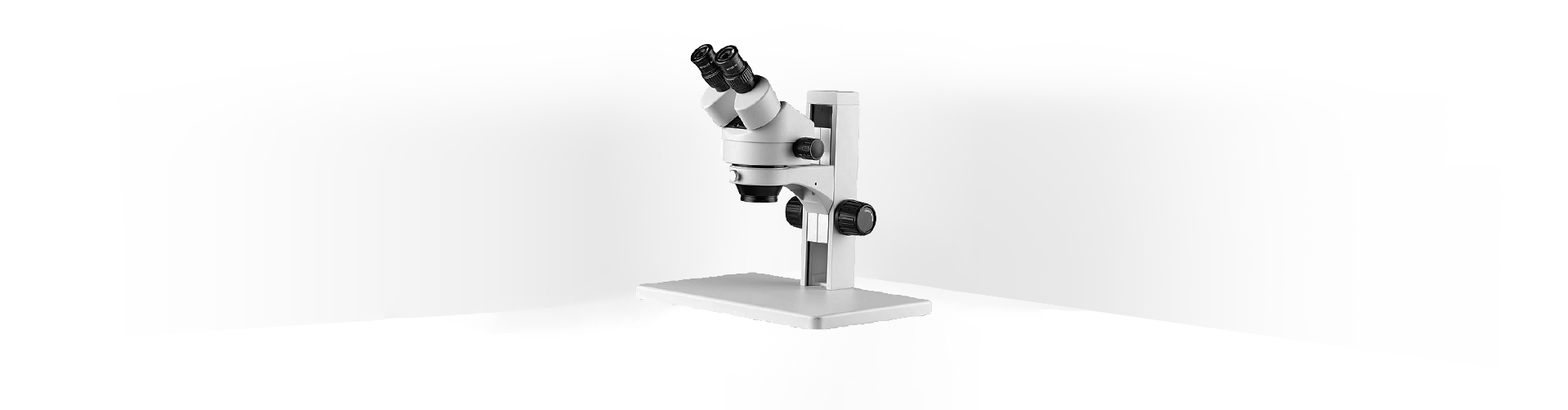

XTL-205 Stereo Binocular Solar Microscope (Configuration 6745)

1. Main Functions (Applications): Used for observing and recording the structural morphology of animal tissues, insect microscopy, and live dissection of small animals; the product complies with the environmental requirements of the "Management Measures for the Restriction of the Use of Hazardous Substances in Electrical and Electronic Products" (Order No. 32).

2. Equipment Composition:

2.1 Main Component: Integrated binocular observation head with built-in achromatric parfocal zoom lens, with zoom knobs on both sides. Hinged binocular, 45° tilt, 360° rotatable, adjustable interpupillary distance, zoom body with built-in fixed-position/magnification function hole, and magnification limit function. Built-in digital acquisition. Wireless connection for acquisition. Soft positioning function; 11 magnification levels including 0.67x/0.8x/1x/1.2x/1.5x/2x/2.5x/3x/3.5x/

4x/4.5x feature echo soft positioning, allowing precise magnification adjustment via tool switch.

3. Performance (Technical Parameters):

3.1 Stereo Binocular Solar Microscope:

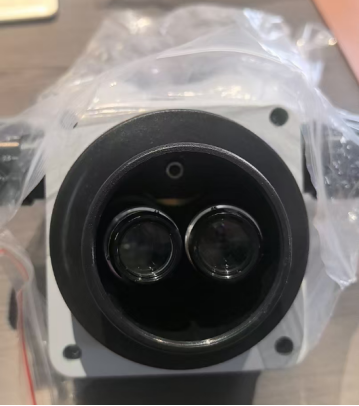

3.1.1 Optical System: Infinity flat-field achromatic optical system, Greenough Objective System;

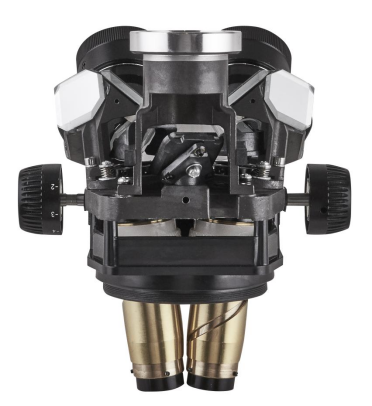

Greenough Objective System

3.1.2 Magnification: Zoom range 0.67x-4.5, horizontal-axis continuous zoom, zoom ratio ≥1:6.5

3.1.3 Zoom Method and Range: Horizontal-axis continuous zoom ≥0.67x-4.5, effective working distance ≥110mm

3.1.4 Zoom Ratio: 1:6.5

3.1.5 Interpupillary Distance Adjustment: 55mm-75mm (diopter adjustable);

3.1.6 Eyepieces: High-eyepoint wide-field eyepiece WFH10×/φ22mm, adjustable diopter eyepiece; with anti-mold function and binocular protective eyecups;

3.1.7 Focusing Mechanism: Adjustable tension-type focusing knob(coarse) with anti-slip device;

3.1.8 Stand and Base: Base: length 280mm x width 210mm. Pillar stand: diameter 35mm x length 260mm, thickness ≤20mm.

3.1.9 Accessories:each device equipped with a black/white plastic stage disc, 2 clips, a frosted glass stage disc, a dust cover, and a lockable and sturdy carrying case.

4. Original Documents: Product manual, certificate of compliance, warranty card, dust cover, and product materials.

5. Light Source: By using the reflection of sunlight as a compensation for indoor lighting, allowing operation without plug-in power.
