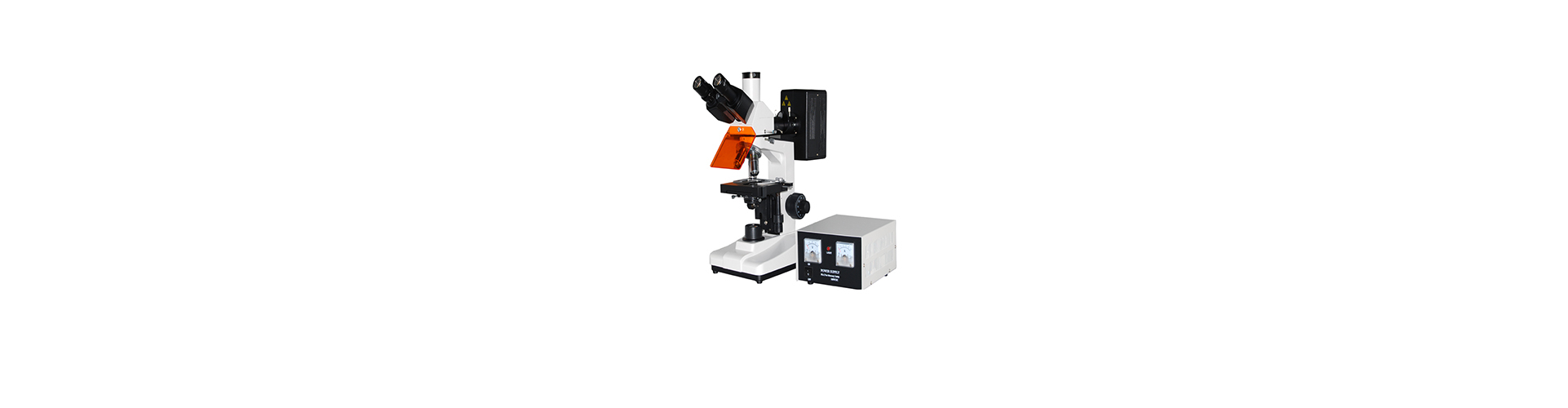

CFM-200 emission fluorescence microscope
CFM-200 series fluorescence microscope is suitable for fluorescence microscopy and transmission field observation. It is an ideal instrument for biological, cytological, oncology, genetics, immunology and other research work.
It is an ideal instrument for research in biology, cytology, oncology, genetics, immunology, etc. It can be used by scientific research, universities, medical and epidemic prevention departments.
The performance characteristics of
▲ Equipped with large field eyepiece and achromatic field and fluorescent objective lens, the field of view is large and clear.
▲ Coarse fretting coaxial focusing mechanism, coarse fretting adjustable, with locking and limiting device, fretting cell value :2 m.
▲ Transmission lighting USES 6V 20W halogen lamp, brightness adjustable;
Fluorescence emission lighting using 100W high pressure mercury lamp, external power box.
Standard configuration
model | CFM-200 |
The eyepiece | Large WF10X (18 mm) Φ |
objective | achromatic 4X/0.10 |
achromatic 10X/0.25 | |
achromatic 100X/1.25(Spring,oil) | |
Fluorescence optical lens 25X/0.65 | |
The eyepiece tube | Red lens (tilting 30˚) |
Focusing mechanism | Coarse fretting coaxial focusing with locking and limiting device, fretting cell value :2 m. |
converter | Four holes (inward-type ball positioning) |
Objective table | Double-layer mechanical mobile type (size :135mmX125mm, range: 75mmX35mm) |
Abbe condenser | N.A.1.25 Up and down |
Color filter | The blue color filter |
Frosted glass | |
collector | Halogen lamps are suitable |
The light source | 6V 20W halogen lamp with adjustable brightness |
Emitter fluorescence device | Mercury lamp box 100W/DC |
Power box: ALTERNATING current :110V or 220V | |
Fluorescence filter group B excitation light band :420~485nm | |
Fluorescence filter group G excitation light band :460~550nm |
