CFM-300 fluorescence microscope
Instrument use
CFM-300 fluorescence microscope using fluorescence microscopy, excitation light configuration, G, B two groups, in the microscope observation specimen has extremely high sensitivity fluorescence, fluorescence microscope can be clearly observed and identified using ordinary microscopy techniques are difficult to observe chromosome specimens, as a research method or experimental method, fluorescence microscope is widely used in biological and technical field.
It is suitable for fluorescence microscopy and visual field observation, and is an ideal instrument for the research of biology, cytology, genetics and immunology.

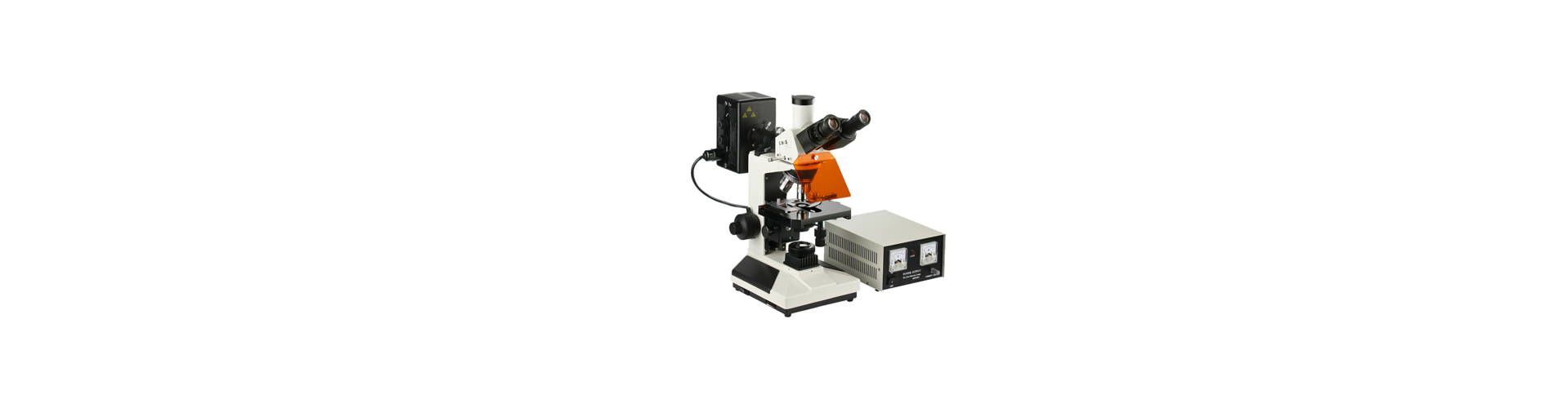

CFM-300 fluorescence microscope
Instrument parameter configuration
model | CFM-300 |
The eyepiece | Large WF10X (20 mm) Φ |
objective | Flat field achromatic objective PL 4X/0.10 |
Flat field achromatic objective PL 10X/0.25 | |
Flat field achromatic objectivePL 40X/0.65(spring) | |
Flat field achromatic objective PL 100X/1.25(spring,oil) | |
Fluorescence optical lens FL 25X/0.65 | |
Fluorescence optical lens FL 40X/1.00 (spring,glycerin) | |
The eyepiece tube | Red lens (tilting 30˚) |
Focusing mechanism | Coarse fretting coaxial focus, coarse fretting adjustable, with locking and limiting device plate, fretting cell value :2 m. |
converter | Four holes (inward-type ball positioning) |
Objective table | Double-layer mechanical mobile (size :160mmX140mm, range: 75mmX50mm) |
Abbe condenser | N.A.1.25 up and down |
Color filter | The blue color filter |
Frosted glass | |
collector | Halogen lamps are suitable |
The light source | 6V 20W halogen lamp with adjustable brightness |
Emitter fluorescence device | Mercury lamp box 100W/DC |
Power box: ALTERNATING current :110V or 220V | |
Fluorescence filter group B excitation light band :420~485nm | |
Fluorescence filter group G excitation light band :460~550nm |
